KYOCERA AVX 06033J220GBSTR RF Chip Capacitors
The Accu-P series thin-film RF and microwave chip capacitors are designed for high-frequency applications including cellular, satellite, radar, and RF communication systems. These capacitors feature ultra-low ESR, high Q, accurate size control, and excellent stability over temperature, voltage, and time. Made with low-loss dielectric materials such as silicon dioxide and silicon oxynitride, they deliver consistent high-frequency performance up to 40GHz, supporting power handling and minimal heat generation. These surface-mount components are suitable for reflow and wave soldering processes and are compliant with international standards for reliability and quality.
KYOCERA AVX 06033J220GBSTR RF Chip Capacitors Specifications:
- Size: 0603 (1608 metric), 0805 (2012 metric), 1210 (3051 metric), 0201, 0402, 01005
- Capacitance Range: from 0.05pF to 1000pF depending on model
- Tolerance: as tight as +0.01pF, commonly ±0.1% to ±0.5%
- Operating Temperature Range: -55°C to +125°C
- Dielectric Materials: Silicon dioxide, Silicon oxynitride
- ESR: Significantly lower than ceramic microwave capacitors, supporting high Q
- High Frequency: Up to 40GHz or more with stable SRF variation
- Power Handling: Suitable for RF power applications with enhanced thermal conductivity
- Terminations: Nickel/solder-coated, RoHS compliant options available
- Manufacturing: Thin-film technology with precise dimensional control and tight capacitance tolerances
- Reliability Testing: Includes life, damp heat, temperature cycling, solder heat resistance, vibration, and adhesion tests
- Applications: Cellular, satellite TV, radar, RF amplifiers, matching networks, and more

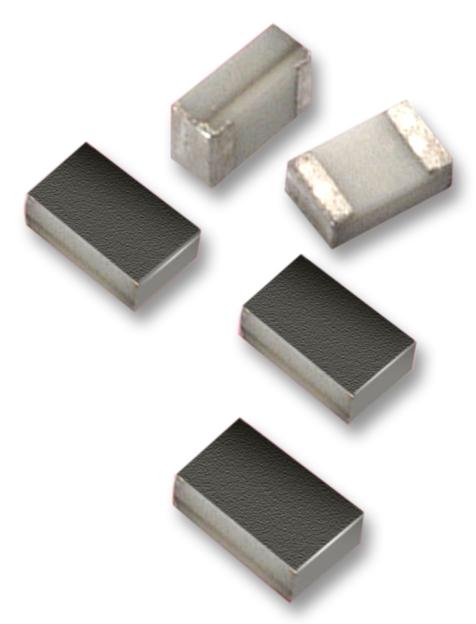

Buy the Accu-P Series RF Chip Capacitors: 0603 Variants 220GBSTR
Purchase Accu-P 220GBSTR online today to ensure high-frequency stability, ultra-low ESR, and accurate sizing for RF, microwave, and satellite communication systems. These surface-mount capacitors are designed for reflow soldering, offer excellent thermal stability, and meet international standards for reliability. Ideal for cellular, radar, and RF test equipment, they provide consistent high-Q performance at frequencies up to 40GHz, minimizing heat generation and maximizing power handling to improve overall circuit efficiency. Order now for fast delivery and high-quality assurance.
Get Accu-P 220GBSTR today—built for precision, high stability, and reliable RF performance in demanding microwave and satellite systems.
Frequently Asked Questions
Where can I buy KYOCERA AVX 06033J220GBSTR?
You can click on the BUY or RFQ button to purchase 06033J220GBSTR from an authorized KYOCERA AVX distributor.
How do I troubleshoot issues or seek technical support for part 06033J220GBSTR?
You can download the 06033J220GBSTR datasheet or visit the KYOCERA AVX website for support.
Who is the manufacturer of 06033J220GBSTR?
KYOCERA AVX
