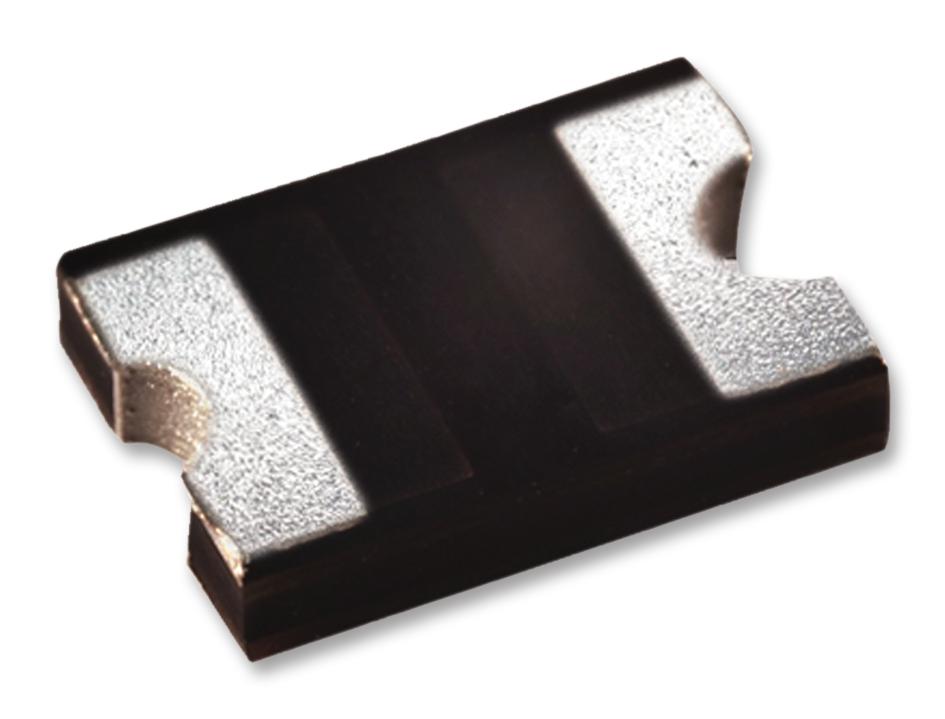

KYOCERA AVX SD0805S020S1R0 Schottky Diode
The SD0805S020S1R0 is a lead-less surface-mount Schottky barrier rectifier diode designed for high-frequency rectification, reverse bias protection, and low forward voltage drop. Encased in a compact 0805 package with a maximum forward current of 1A and a peak reverse voltage of 20V, it features solderable, tin-plated terminations, UL 94V-0 rated epoxy, and operates effectively within -55°C to 125°C. Ideal for portable, switch mode power supplies and electronic devices requiring reliable, efficient diode performance in a small form factor.
KYOCERA AVX SD0805S020S1R0 Schottky Diode Specifications:
- Package: 0805 surface-mount
- Maximum Forward Current: 1A
- Maximum Reverse Voltage: 20V
- Forward Voltage Vf: 0.42V at 1A
- Surge Current: 400mA
- Operating Temperature Range: -55°C to 125°C
- Storage Temperature Range: -55°C to 150°C
- Termination: 100% Sn plated, solderable
- Material: UL 94V-0 rated epoxy, halogen free
- Designed for high efficiency and low power loss
- Lead-less chip with top-bottom symmetry for improved mounting
- Application: Switch mode power supplies, reverse bias protection, portable electronics
Buy the AVX SD0805S020S1R0 – Reliable Schottky Diode for Industrial Applications
Purchase the AVX SD0805S020S1R0 Schottky diode online today and enhance your electronic designs with a compact, high-performance component. This reliable surface-mount diode features a 20V reverse voltage rating, 1A maximum forward current, and low forward voltage drop for efficient power management. Perfect for high-frequency rectification, reverse bias protection, and portable electronics. The lead-less, epoxy-encased design ensures easy mounting and excellent heat transfer. Ensure your projects benefit from top-tier quality and consistent performance by ordering online now.
Order your AVX Series SD0805S020S1R0 today and give your electronic projects the dependable quality they deserve with high-current, low-voltage Schottky diodes.
Frequently Asked Questions
Where can I buy KYOCERA AVX SD0805S020S1R0?
You can click on the BUY or RFQ button to purchase SD0805S020S1R0 from an authorized KYOCERA AVX distributor.
How do I troubleshoot issues or seek technical support for part SD0805S020S1R0?
You can download the SD0805S020S1R0 datasheet or visit the KYOCERA AVX website for support.
Who is the manufacturer of SD0805S020S1R0?
KYOCERA AVX
