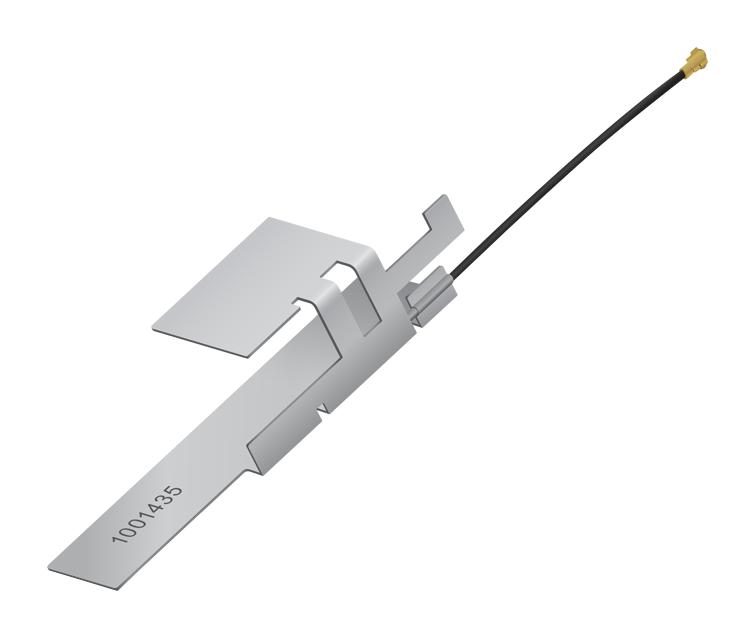

KYOCERA AVX 1001435 Wi-Fi Dual Band Antenna
The KYOCERA AVX 1001435 is a Wi-Fi dual-band stamp metal embedded antenna engineered for high functionality and performance in space-constrained designs. This innovative antenna provides compelling advantages for 2.4 GHz and 5 GHz enabled handheld devices, media players, and other mobile devices. It requires a smaller design keep-out area and yields a quicker time-to-market without sacrificing RF performance. The antenna's superior RF field containment minimizes interaction with surrounding components, ensuring reliable operation across various applications such as agriculture, automotive, healthcare, and smart home technology.
KYOCERA AVX 1001435 Wi-Fi Dual Band Antenna Specifications:
- Frequency: 2400 – 2485 MHz / 5150 – 5825 MHz
- Mounting: Drop-in or Adhesive on bottom (optional)
- Peak Gain (Off Ground): 4.2 dBi (2400 MHz), 6.4 dBi (5150 MHz)
- Peak Gain (On Ground): 4.7 dBi (2400 MHz), 6.0 dBi (5150 MHz)
- Average Efficiency (Off Ground): 82% (2400 MHz), 80% (5150 MHz)
- Average Efficiency (On Ground): 87% (2400 MHz), 75% (5150 MHz)
- VSWR Match: 2:1 max
- Feed Point Impedance: 50 ohms unbalanced
- Polarization: Linear
- Power Handling: 0.5 Watt CW
- Size: 41.1 x 14.6 x 9.5 mm
- Weight: 1.55 grams
- Cable/Connector: Length: 70 mm, Diameter: 1.13 mm, Color: Black; u.Fl compatible connector
