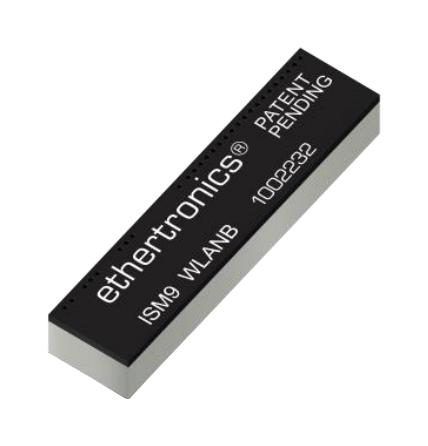

KYOCERA AVX 1002232 Wireless Embedded Antenna
The Ethertronics ISM and WLAN FR4 Embedded Antenna supports a wide range of wireless applications including WLAN, Bluetooth, IoT, healthcare, and smart home devices. Designed for small, thin, and efficient PCB layouts, it offers high performance with a peak gain of up to 1.5 dBi and 63% efficiency in the EU and US ISM bands. With a size of 35.0 x 9.0 x 3.2 mm and a power handling of 2 Watts CW, this versatile antenna ensures reliable connectivity, quick deployment, and compliance with RoHS standards for industrial and consumer wireless products.
KYOCERA AVX 1002232 Wireless Embedded Antenna Specifications:
- Size: 35.0 x 9.0 x 3.2 mm
- Weight: 2.0 grams
- Gain: Up to 1.5 dBi (ISM US), 0.51 dBi (EU)
- Efficiency: 59-63%
- VSWR Match: 2.0:1 max
- Impedance: 50 ohms unbalanced
- Polarization: Linear
- Power Handling: 2 Watt CW
- Supports: WLAN, Bluetooth, IoT, Healthcare, Smart Home
- Operating Frequency: 863-928 MHz, 2400-2500 GHz
- Mounting: SMT (P&P), Tape & Reel, 5600 pieces per box
- Typical Performance on 110 x 50 mm PCB
- Reliability: RoHS compliant
Buy the Ethertronics Series ISM & WLAN Embedded Antenna: 1002232
Enhance your wireless devices with the Ethertronics 1002232 embedded antenna. Designed for ISM and WLAN applications, it offers high efficiency, small form factor, and robust performance. Easy to mount on small PCB layouts, ensuring your product meets industrial and consumer standards for reliability and compliance. With a peak gain of 1.5 dBi, 59-63% efficiency, and support for 868-928 MHz and 2400-2500 MHz bands, this antenna is ideal for IoT, healthcare, and automation solutions. Purchase online for fast delivery and seamless integration.
Get Ethertronics 1002232 today—built for high performance and reliable wireless connectivity in compact designs.
Frequently Asked Questions
Where can I buy KYOCERA AVX 1002232?
You can click on the BUY or RFQ button to purchase 1002232 from an authorized KYOCERA AVX distributor.
How do I troubleshoot issues or seek technical support for part 1002232?
You can download the 1002232 datasheet or visit the KYOCERA AVX website for support.
Who is the manufacturer of 1002232?
KYOCERA AVX
