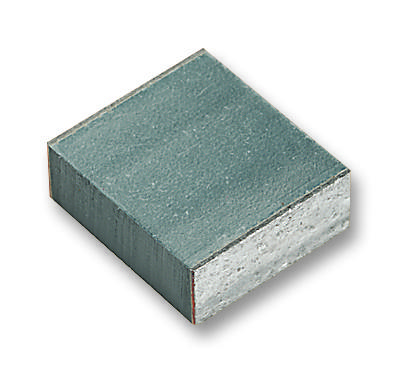

KYOCERA AVX CB017C0103JBA Film Capacitor
The PEN dielectric CB Series film chip capacitors utilize a stacked construction with metallized polyethylene naphtalate films, offering excellent stability and high-temperature tolerance. Suitable for IR and vapor phase reflow soldering, these non-polar, surface-mount devices feature low ESR & ESL, high electrical reliability, and are ideal for automotive, telecom, and industrial low-voltage applications requiring miniaturization and durability. Available in tape and reel packaging, they ensure precise placement with compatibility across various printed circuit board materials, providing safe, self-healing, and thermally shock-resistant performance in a compact form factor.
KYOCERA AVX CB017C0103JBA Film Capacitor Specifications:
- Dielectric: PEN (polyethylene naphthalate)
- Construction: Naked, stacked, metallized films
- Capacitance Range: AnF to 4.7uF
- Nominal Voltages: 25Vdce to 6380Vdce
- Temperature Range: -55°C to 125°C with voltage derating of 1.25%/°C between 105°C and 125°C
- Dissipation Factor (DF) at 1kHz: < 100 x 10^-3
- Insulation Resistance: IR > 1000 MO at 20°C for C < 0.33uF
- Test Voltage: 1.4Vr for 2 sec at 25°C
- Climatic Category: 55/125/56
- Reflow Soldering: IR or vapor phase, not wave soldering
- Outer Layer: Matte Sn plating with Ni barrier, silver epoxy resin on brass terminations
- Dielectric: Non-polar, self-healing, with excellent thermal shock resistance
- Application: Suitable for automotive, telecom, industrial low-voltage applications, designed for use in surface-mount devices with tape & reel packaging.
Buy the AVX Series CB Film Capacitor: CB017C0103JBA
Purchase the AVX CB Series film capacitor online today for reliable performance in automotive, telecom, and industrial low-voltage applications. These surface-mount devices feature a PEN dielectric with stacked construction, offering excellent stability, low ESR & ESL, high-temperature tolerance, and self-healing properties. They are available in tape and reel packaging, ensuring easy automatic placement. With high electrical reliability, thermal shock resistance, and compatibility with vapor phase reflow soldering, this capacitor is ideal for miniaturization and demanding electronic environments, providing long-lasting durability and safety.
Get AVX CB017C0103JBA film capacitor today—designed for precision, durability, and high-temperature stability in sensitive electronic assemblies.
Frequently Asked Questions
Where can I buy KYOCERA AVX CB017C0103JBA?
You can click on the BUY or RFQ button to purchase CB017C0103JBA from an authorized KYOCERA AVX distributor.
How do I troubleshoot issues or seek technical support for part CB017C0103JBA?
You can download the CB017C0103JBA datasheet or visit the KYOCERA AVX website for support.
Who is the manufacturer of CB017C0103JBA?
KYOCERA AVX
