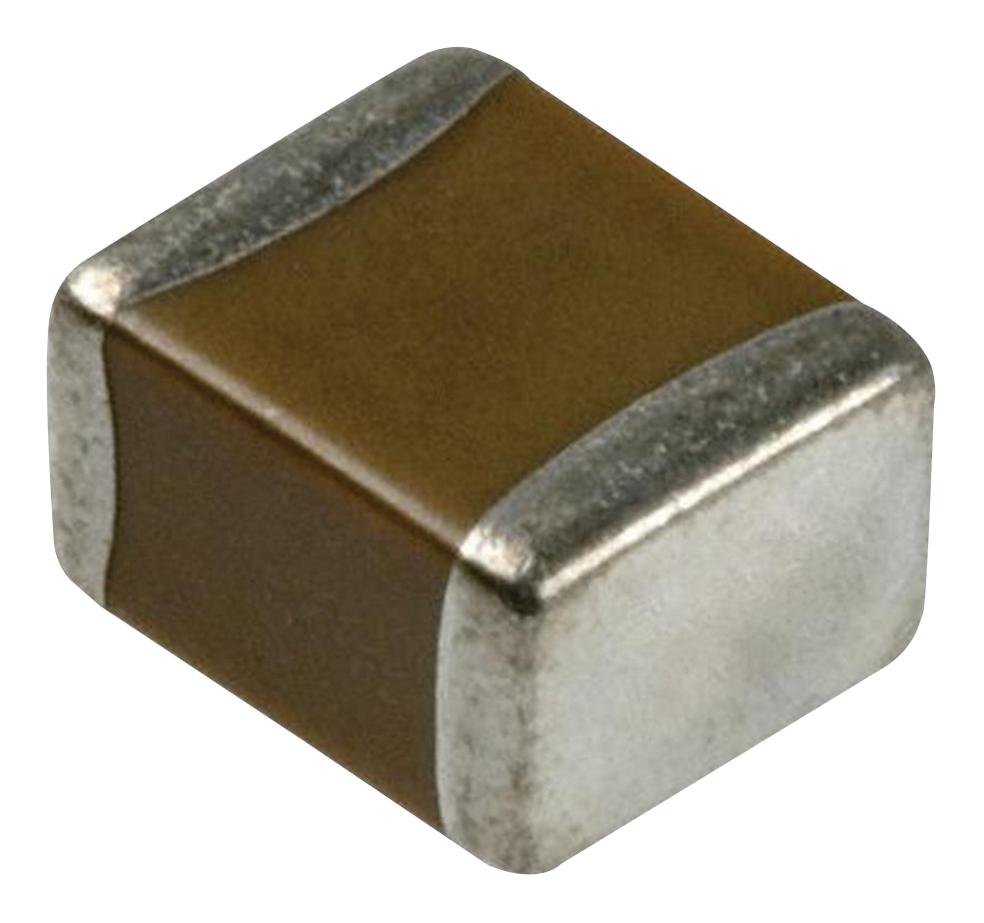

KYOCERA AVX 1206AA221JAT2A High Voltage MLC Capacitor
High voltage MLC chips are designed for applications requiring voltage ratings from 600V to 5000V, including snubbers in power converters, resonators, and high voltage coupling. They offer low ESR at high frequencies, come in various sizes such as 0805, 1206, 1210, and larger, and may require careful soldering precautions like reflow only for larger sizes. These capacitors feature reliable dielectric options like NPO and X7R and are available with leaded or surface-mount terminations, making them suitable for high-frequency, high-voltage power systems.
KYOCERA AVX 1206AA221JAT2A High Voltage MLC Capacitor Specifications:
- Capacitor sizes: 0805, 1206, 1210, 1808, 1812, 1825, 2220, 2225, 3640
- Voltage ratings: 600V, 630V, 1000V, 1500V, 2000V, 2500V, 3000V, 4000V, 5000V
- Dielectrics: NPO (COG), X7R
- Capacitance range: 10 pF to 4 µF, with specific values for each size
- Dimensions: Length from 2.10 mm to 40.25 mm depending on size, Width from 1.25 mm to 10.2 mm, Thickness from 1.35 mm to 3.40 mm
- Termination: Solderable surface-mount or leaded configurations, reflow soldering only for larger sizes
- Operating temperature: -55°C to +125°C, with stability and low leakage suitable for high-voltage applications
- Performance: Low ESR, low dissipation factor, suitable for high-frequency high-voltage systems
- Construction: RoHS compliant, may include surface coating for arc prevention
Buy the AVX Series High Voltage MLC Capacitors: 1206AA221JAT2A
Purchase AVX high voltage MLC capacitor now for your power electronics projects to ensure high reliability and low leakage. Ideal for high-frequency power converters, resonators, and high voltage coupling circuits, these capacitors come in various sizes and voltages up to 5000V. Their low ESR and stable dielectric types like NPO and X7R make them suitable for demanding high-voltage, high-frequency applications. Buy online today and enhance the performance and safety of your high voltage systems with trusted AVX quality.
Buy AVX high voltage MLC chips now and experience unmatched reliability and performance in your high-frequency power conversion and high-voltage systems.
Frequently Asked Questions
Where can I buy KYOCERA AVX 1206AA221JAT2A?
You can click on the BUY or RFQ button to purchase 1206AA221JAT2A from an authorized KYOCERA AVX distributor.
How do I troubleshoot issues or seek technical support for part 1206AA221JAT2A?
You can download the 1206AA221JAT2A datasheet or visit the KYOCERA AVX website for support.
Who is the manufacturer of 1206AA221JAT2A?
KYOCERA AVX
