KYOCERA AVX 1206AA470JAT2A High Voltage Capacitor
High voltage MLC chips for 600V to 5000V applications. Designed to meet demanding performance needs such as low leakage, small size, and low ESR at high frequencies. Suitable for snubbers, resonators, and high voltage coupling in power supplies, these chips support a broad capacitance range from 10 pF to several microfarads with various dielectric options like NPO and X7R. Available in multiple sizes including 0805, 1206, 1825, and larger, with surface-mount reflow soldering compatibility and protective coatings for high voltage operation.
KYOCERA AVX 1206AA470JAT2A High Voltage Capacitor Specifications:
- Capacitance Range: 10 pF to several microfarads (e.g., 4 μF, 22 μF, 220 nF)
- Working Voltage: 600V/630V to 5000V
- Dielectric Types: NPO (COG), X7R
- Sizes: 0805, 1206, 1210, 1808, 1812, 1825, 2220, 2225, 3640
- Dimensions: Length ranges from 2.10 mm to 40.25 mm, Width from 1.25 mm to 10.2 mm, Thickness 1.35 mm to 3.4 mm
- Termination: Tinned, Pb/Ag plated, optional non-specified
- Temperature Range: Typically -55°C to +125°C
- Soldering Method: Reflow only, with precautions for larger sizes
- Performance: Low ESR, low leakage, high-frequency stability
- Standards: RoHS compliant, suitable for surface mount applications

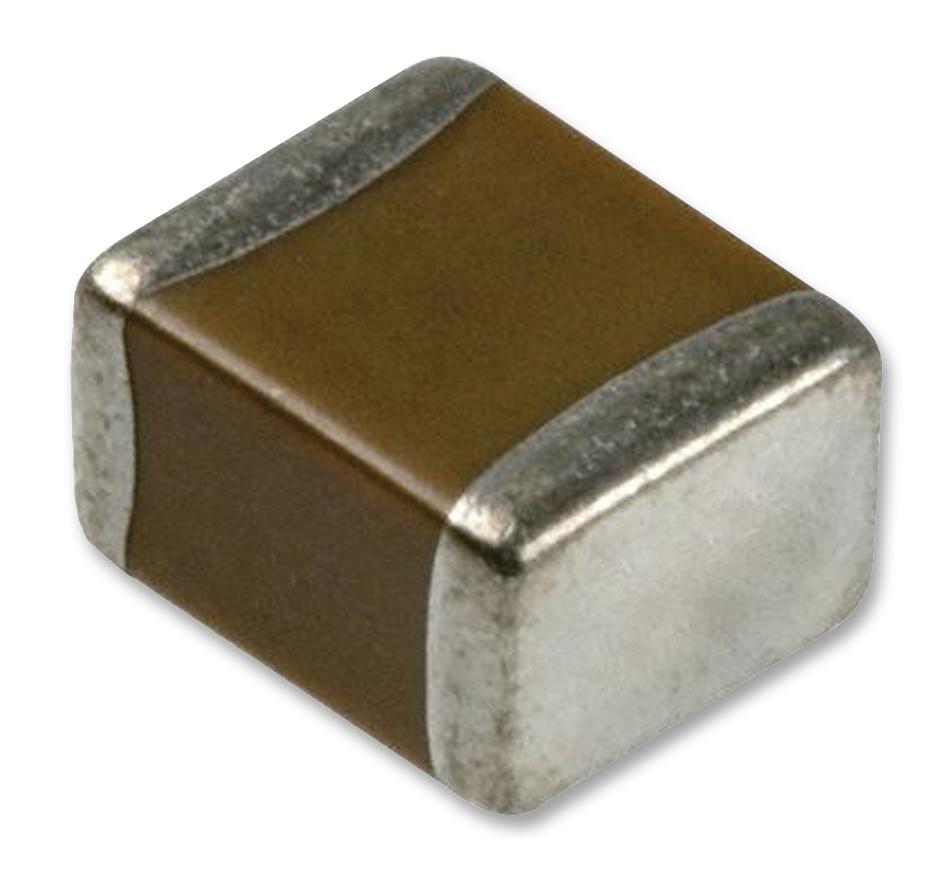

Buy the AVX Series High Voltage MLC Chips: Part 1206AA470JAT2A
Purchase the AVX high voltage MLC capacitor today for reliable performance in high voltage systems. Designed to handle voltages from 600V to 5000V, these chips offer low leakage, small size, and excellent high-frequency characteristics. Suitable for snubbers, resonators, and coupling in power converters, the chips are available in sizes such as 0805, 1206, and larger with various dielectric options. Secure your supply of these high-quality, RoHS-compliant components today, ensuring durability and operational stability in your applications.
Get AVX high voltage MLC chips today—built for precision, high-frequency performance, and long-lasting durability in demanding applications.
Frequently Asked Questions
Where can I buy KYOCERA AVX 1206AA470JAT2A?
You can click on the BUY or RFQ button to purchase 1206AA470JAT2A from an authorized KYOCERA AVX distributor.
How do I troubleshoot issues or seek technical support for part 1206AA470JAT2A?
You can download the 1206AA470JAT2A datasheet or visit the KYOCERA AVX website for support.
Who is the manufacturer of 1206AA470JAT2A?
KYOCERA AVX
