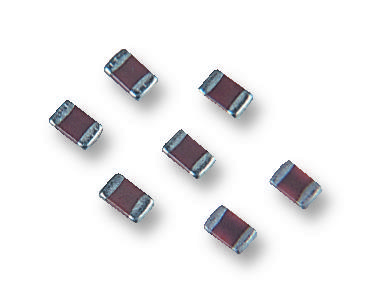

KYOCERA AVX 1808WC122KAT2A High Voltage MLC Chip Capacitor
High voltage MLC chips are designed for 600V to 5000V applications, offering low leakage, high value capacitance, and small size. Ideal for snubbers in high-frequency power converters, resonators in SMPS, and high voltage coupling or blocking. These chips feature low ESR at high frequencies and require careful handling during soldering, especially for sizes 1210 and larger, which should be reflow soldered only. Protective surface coatings may be necessary to prevent external arcing, making them suitable for demanding high voltage applications and robust performance in electronic circuits.
KYOCERA AVX 1808WC122KAT2A High Voltage MLC Chip Capacitor Specifications:
- Capacitor Type: High voltage MLC chip
- Voltage Range: 600V to 5000V
- Dielectric: NPO (COG) and X7R options available
- Capacitance Range: 10 pF to 4 μF (select sizes and styles specified)
- Dielectric Temperature Range: -55°C to +125°C
- Size Variants: 0805, 1206, 1210, 1808, 1812, 1825, 2220, 2225, 3640
- Physical Dimensions: Lengths from 2.10 mm to 9.14 mm, widths from 1.25 mm to 10.2 mm, and thicknesses from 0.032 mm to 0.134 mm
- Reflow Soldering: Preferred for sizes 1210 and larger; reflow only
- Low ESR: Maintains low equivalent series resistance at high frequencies
- Additional: Protective surface coating may be necessary to prevent external arcing
- Terminations: Leaded, SMT, or thru-hole options; RoHS compliant
- Applications: High-frequency power converters, snubbers, resonators, high voltage coupling and blocking components
Buy the AVX Series High Voltage MLC Chips: 1808WC122KAT2A
Order AVX high voltage MLC chip capacitors today for reliable performance across 600V to 5000V applications. Designed for high frequency power converters, snubbers, and high voltage switching, these chips deliver low leakage, low ESR, and compact size. They feature robust construction, with sizes ranging from 0805 to 3640, suitable for surface mount installation or thru-hole configurations. Ensure optimal circuit performance with these specialized high voltage capacitors, which include protective surface coatings for external arcing prevention and are compatible with reflow soldering processes for sizes 1210 and larger. Buy now and enhance your power electronics system durability and efficiency.
Get AVX high voltage MLC chips today—built for precision, low leakage, and long-lasting durability in high-voltage electronic applications.
Frequently Asked Questions
Where can I buy KYOCERA AVX 1808WC122KAT2A?
You can click on the BUY or RFQ button to purchase 1808WC122KAT2A from an authorized KYOCERA AVX distributor.
How do I troubleshoot issues or seek technical support for part 1808WC122KAT2A?
You can download the 1808WC122KAT2A datasheet or visit the KYOCERA AVX website for support.
Who is the manufacturer of 1808WC122KAT2A?
KYOCERA AVX
