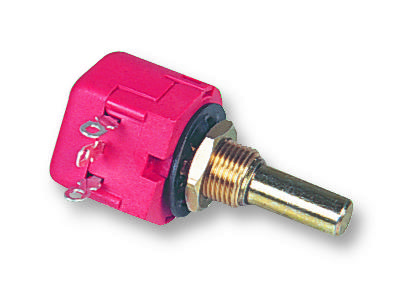

KYOCERA AVX 3109608798 Rotary Potentiometer
The ABW 1 Series wirewound rotary potentiometer is encased with a nominal width of 23 mm and solder tag terminals. It features an adjustable resistance range from 50 to 22k ohms, with a temperature tolerance of -40°C to +90°C. Designed for precise electrical adjustments, it offers a resistance taper of linear type, an electrical travel of 265°, and a mechanical travel of 285°. The potentiometer supports a rated dissipation of 1 watt at 40°C, with an operating torque of 0.8 to 3 Nm. Endstop torque is 100 Nm, and it withstands over 10,000 cycles with an insulation voltage of 1 kV.
KYOCERA AVX 3109608798 Rotary Potentiometer Specifications:
- Resistance Range: 50-22k Ohms
- Temperature Range: -40°C to +90°C
- Resistance Tolerance: ±10% (on request ±20%)
- Insulation Resistance: 160 MΩ (on request +5%)
- Electrical Travel: 265° ±5°
- Mechanical Travel: 285° ±5°
- Rated Dissipation: 1W at 40°C
- Operating Torque: 0.8 - 3 Nm
- Endstop Torque: 100 Nm
- Isolation Voltage: 1 kV
- Durability: 10,000 cycles
- Spindle Material: Metal or plastic moulded, diameter varies
- Spindle End: Customizable length and flat with standard options
- Design: Encased, solder tag terminals
- Size: Nominal width 23 mm
Buy the AB Elektronik Series ABW 1 Rotary Potentiometer: 3109608798
Discover the high-quality AB Elektronik Series ABW 1 rotary potentiometer, featuring a robust encased design with a 23 mm width and resistance range from 50 to 22kΩ. Ideal for precise electrical adjustments, it supports a linear resistance taper and offers excellent durability with over 10,000 cycles. Suitable for diverse control applications, this potentiometer ensures reliable performance with a temperature range of -40°C to +90°C, rated dissipation of 1 watt, and a compact size ideal for space-constrained environments. Buy online now for dependable precision.
Get AB Elektronik ABW 1 rotary potentiometer today—built for precision and long-lasting durability in electrical control applications.
Frequently Asked Questions
Where can I buy KYOCERA AVX 3109608798?
You can click on the BUY or RFQ button to purchase 3109608798 from an authorized KYOCERA AVX distributor.
How do I troubleshoot issues or seek technical support for part 3109608798?
You can download the 3109608798 datasheet or visit the KYOCERA AVX website for support.
Who is the manufacturer of 3109608798?
KYOCERA AVX
