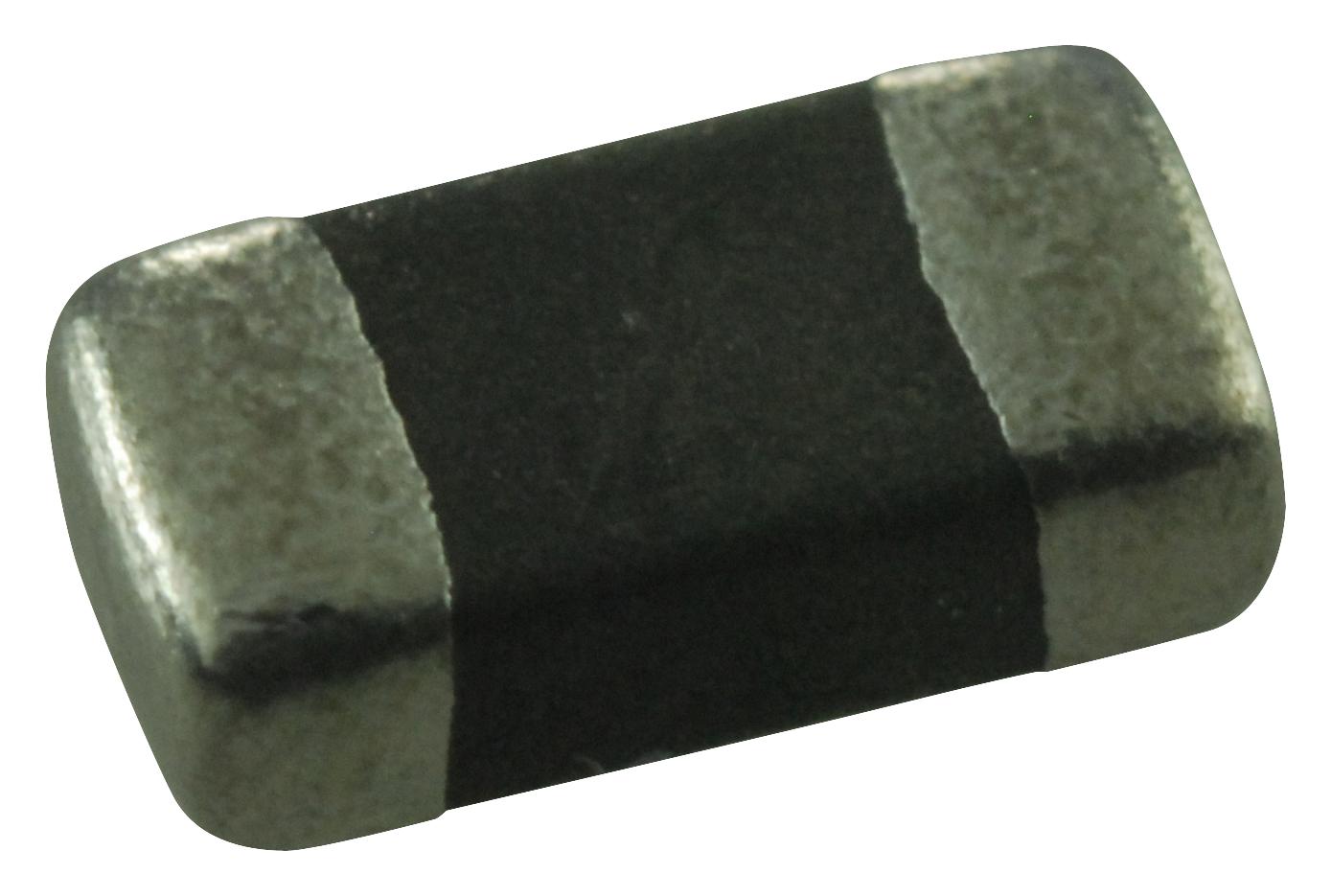

KYOCERA AVX USB0001DP Low Capacitance Varistor
USB Series low capacitance multilayer varistors are designed to protect high-speed data lines and ports against Electrostatic Discharges (ESD). Made with Zinc Oxide (ZnO) ceramic semiconductors, these bi-directional, capacitor-like devices feature very low capacitance, fast turn-on times, and high transient energy ratings, ensuring reliable performance in data, Ethernet, USB, and Firewire applications. They meet IEC61000-4-2 standards, withstand high dV/dt, and are available in multiple case sizes and configurations, providing effective, compact protection for sensitive electronic circuits and communication interfaces.
KYOCERA AVX USB0001DP Low Capacitance Varistor Specifications:
- Operating Temperature: -55°C to 125°C
- Working Voltage: < 18V DC
- Case Sizes: 0402, 0603, 0405 2x array, 0612 4x array
- Typical Capacitance: 3pF, 6pF, 10pF
- ESD Protection: IEC 61000-4-2 15kV (air), 8kV (contact)
- Peak Current Rating: 1/0 BUS Lines, Ethernet, USB ports
- Transient Energy Rating: 10x1000μs, approximately 0.015J
- Response Time: < 1ns
- DC Working Voltage: Up to 18V
- Material: Zinc Oxide (ZnO) ceramics
- Application: USB, Ethernet, Firewire, high-speed data lines
- Package: Discrete and array configurations
- Performance: Fast turn-on, low clamping voltage, EMI attenuation
- Physical Dimensions: Length varies with model, typical 0.18+0.028/-0.008 inches
Buy the KYOCERA Series USB Low Capacitance Varistors: USB0001
Secure your electronic devices with KYOCERA Series USB Low Capacitance Varistors. Designed for high-speed data lines, these devices provide fast ESD protection, low capacitance, and high transient energy ratings. Perfect for USB ports, Ethernet, and Firewire applications, their compact size and reliable performance ensure your circuits remain safe from voltage spikes and electrical noise. Discover easy online purchasing options today and safeguard your sensitive equipment with a proven, high-quality varistor designed for demanding communication and data transmission environments.
Buy KYOCERA USB0001 low capacitance varistor now and experience unmatched reliability and protection for high-speed data lines.
Frequently Asked Questions
Where can I buy KYOCERA AVX USB0001DP?
You can click on the BUY or RFQ button to purchase USB0001DP from an authorized KYOCERA AVX distributor.
How do I troubleshoot issues or seek technical support for part USB0001DP?
You can download the USB0001DP datasheet or visit the KYOCERA AVX website for support.
Who is the manufacturer of USB0001DP?
KYOCERA AVX
