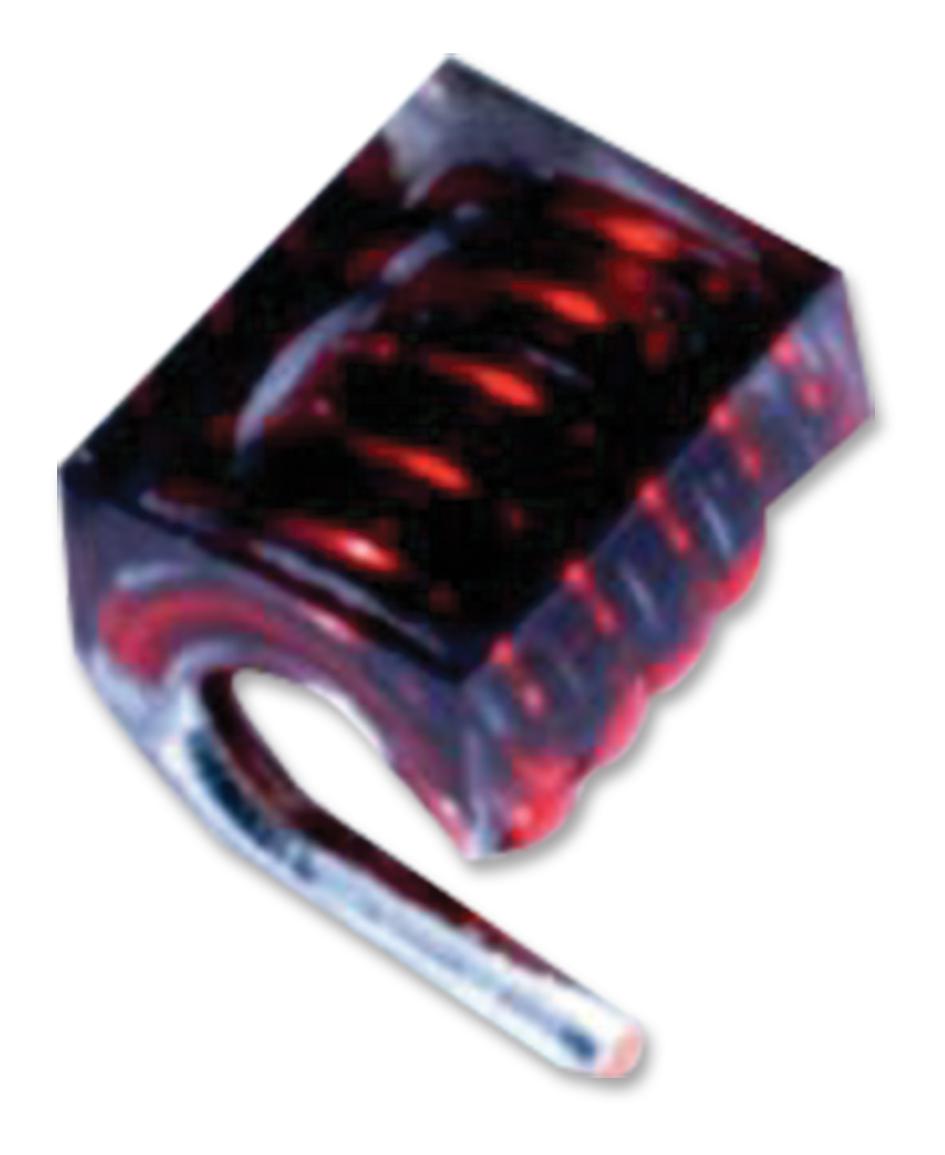

KYOCERA AVX AL05B12N5GTR Air Core RF Inductor
The AVX AL Series Air Core RF Inductors are high-performance components ideal for RF circuits, broadband filtering, impedance matching, and frequency tuning. They offer higher Q factors, excellent SRF, and capable of handling currents up to 4.0A. With inductance values from 1.65nH to 538nH and tolerances of 2%, 5%, and 10%, these inductors operate effectively within a temperature range from -40°C to +125°C. They feature tin-silver over copper terminations, making them suitable for demanding RF applications requiring reliable impedance matching and low-loss operation.
KYOCERA AVX AL05B12N5GTR Air Core RF Inductor Specifications:
- Inductance Range: 1.65nH to 538nH
- Tolerance: 2%, 5%, 10%
- Rated Current: 1.5A to 4.0A
- Operating Temperature: -40°C to +125°C
- Terminations: Tin-silver over copper, 96.5% Sn/3% Ag/0.5% Cu
- Physical Dimensions: Length varies with model, typical tolerance ±0.10mm, package options with dimensions in the datasheet
- Test Frequency: Up to 10 GHz for SRF measurement
- DCR Max: Varies by model, typically below 0.15Ω
- Material: Air core, wound construction for high Q
- RoHS Compliant: Yes
- Packaging: Embossed reel, minimum thickness 0.10mm, tape width varies per series
Buy the AVX AL Series Air Core RF Inductors – Reliable RF Components for Industrial Applications
Enhance your RF circuitry with AVX AL Series air core inductors, offering high Q, broad inductance options, and robust current handling. Perfect for broadband filtering, impedance tuning, and RF applications demanding reliability and low loss. Designed to operate up to 125°C with precise inductance values from 1.65nH to 538nH, these inductors feature tin-silver over copper terminations for durability in industrial environments. Whether you need high-frequency performance or excellent impedance matching, buy online today to ensure your RF modules function flawlessly with proven AVX quality.
Buy AVX AL Series RF inductors now and experience unmatched performance with high Q and excellent impedance matching capabilities for your RF designs.
Frequently Asked Questions
Where can I buy KYOCERA AVX AL05B12N5GTR?
You can click on the BUY or RFQ button to purchase AL05B12N5GTR from an authorized KYOCERA AVX distributor.
How do I troubleshoot issues or seek technical support for part AL05B12N5GTR?
You can download the AL05B12N5GTR datasheet or visit the KYOCERA AVX website for support.
Who is the manufacturer of AL05B12N5GTR?
KYOCERA AVX
