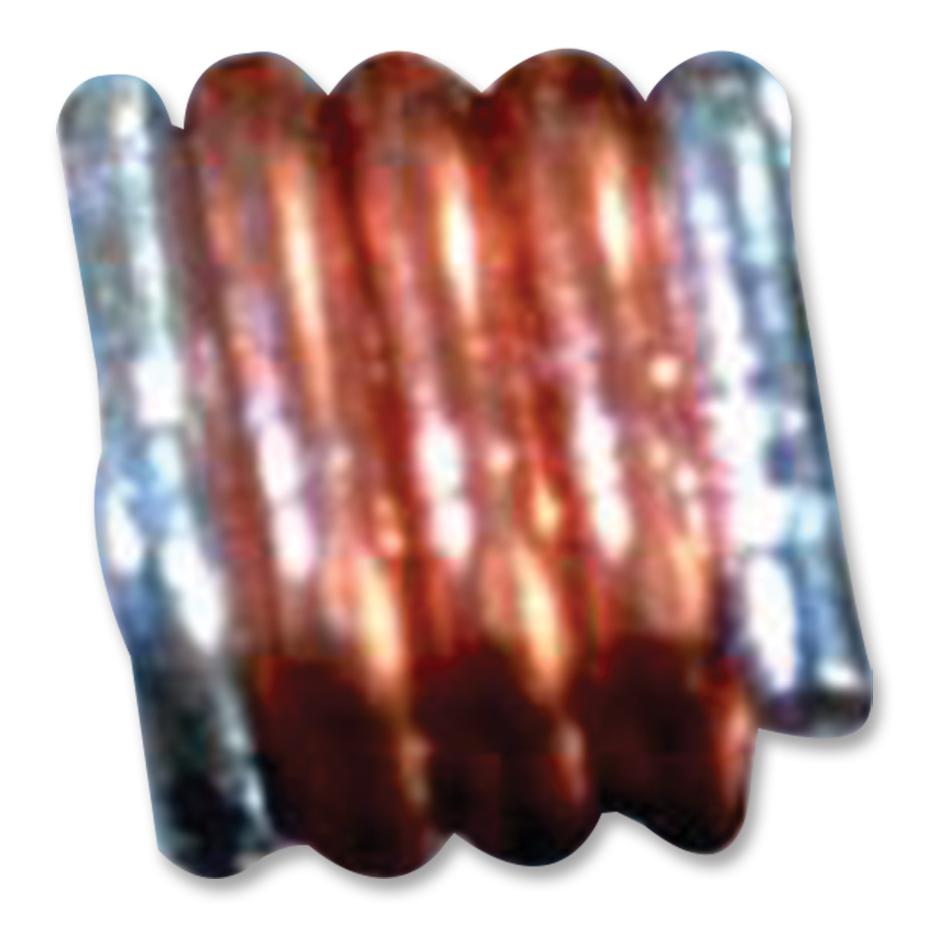

KYOCERA AVX AS0605N5GTR Square Air Core RF Inductor
The KYOCERA AVX AS0605N5GTR is a square air core RF inductor, part of the AS Series, engineered for high-frequency applications. Its unique square cross-section provides enhanced performance compared to traditional toroidal coils, offering advantages in manufacturing and efficiency. Ideal for RF circuits, broadband I/O filtering, frequency selection, and impedance matching, this inductor is available in various sizes and inductance values to meet diverse design requirements. The AS0605N5GTR is RoHS compliant and designed for reliable operation across a wide temperature range, making it suitable for demanding industrial and commercial applications.
KYOCERA AVX AS0605N5GTR Square Air Core RF Inductor Specifications:
- Inductance Range: 5.5nH to 27.3nH
- Inductance Tolerance: 2%, 5%, 10%
- Rated Current: 2.7A, 2.9A, 4.4A
- Operating Temperature: -40˚C to +125˚C
- Termination: 96.5% Tin/3% Silver over 0.5% Copper
- Q: min. 60, 64, 90, 90, 90, 90, 100, 100, 90, 100, 100, 100, 130, 130, 90, 130, 130, 130, 130
- Test Frequency: 400 MHz
- DCR max: 3.4 mΩ, 6 mΩ, 7 mΩ, 8 mΩ, 9 mΩ, 10 mΩ, 6 mΩ, 7 mΩ, 6.3 mΩ, 8 mΩ, 9 mΩ, 10 mΩ, 6 mΩ, 7 mΩ, 7.2 mΩ, 8 mΩ, 9 mΩ, 10 mΩ
- SRF: 4.9 GHz, 5.2 GHz, 4.3 GHz, 4.8 GHz, 4.4 GHz, 4 GHz, 4.6 GHz, 4 GHz, 3.6 GHz, 4.3 GHz, 4 GHz, 3.5 GHz, 5.2 GHz, 4.3 GHz, 3 GHz, 3.4 GHz, 3.7 GHz, 2.6 GHz, 2.5 GHz, 3.2 GHz
