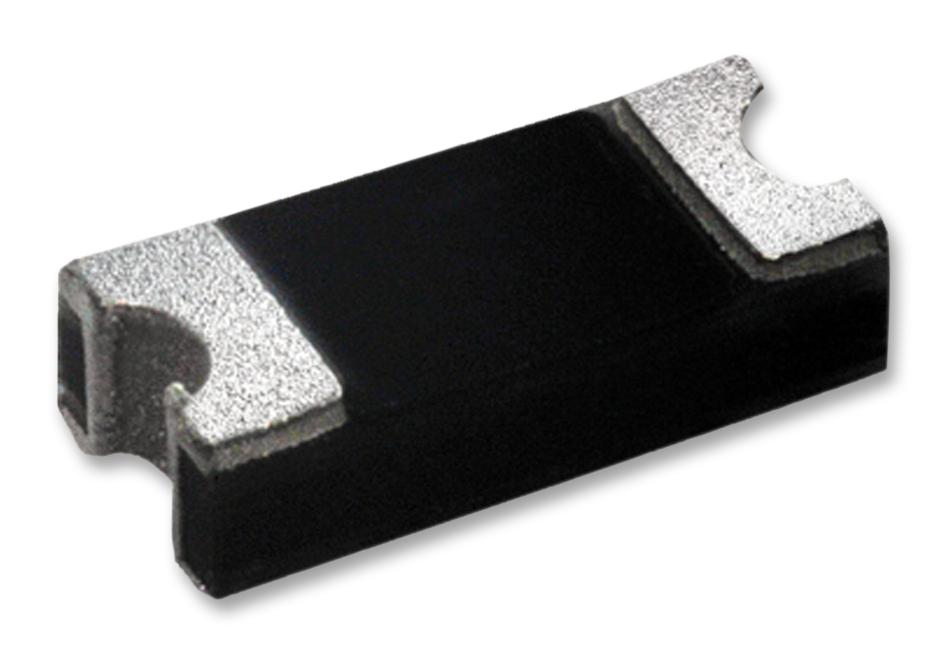

KYOCERA AVX SD1206S100S1R0 Schottky Barrier Diode
This lead-less chip-form Schottky barrier rectifier diode offers high efficiency, low forward voltage, and robust current handling capacity suitable for power supplies and high-frequency rectification. Encased in UL 94V-0 halogen-free material, it features RoHS compliance. Designed for surface-mount technology, it ensures reliable soldering, optimal heat dissipation, and mechanical durability across a temperature range of -55°C to 125°C. Its compact size and low power loss make it ideal for portable devices, power circuits, and reverse bias protection applications, boosting overall efficiency and system performance.
KYOCERA AVX SD1206S100S1R0 Schottky Barrier Diode Specifications:
- Size: 3220 (20 V, 3 A)
- Material: Halogen-free, UL 94V-0
- Temperature Range: -55°C to 125°C
- Maximum Forward Voltage: 0.47 V (Typ), 0.55 V (Max)
- Maximum Reverse Voltage: 20 V
- Maximum Forward Surge Current: 100 mA
- Terminations: 100% Sn plated, solderable
- Case: Lead-less chip, surface-mount
- Operating Temperature: -55°C to 125°C
- Storage Temperature: -55°C to 150°C
Buy the AVX SD1206S100S1R0 – Reliable Schottky Diode for Industrial Applications
Order the AVX SD1206S100S1R0 Schottky diode online now and enjoy superior efficiency, low forward voltage, and robust performance for power supplies and signal rectification. Designed with a lead-less chip form, it ensures excellent heat transfer, reliable solderability, and mechanical durability. The RoHS-compliant, halogen-free construction guarantees environmentally friendly operation across a wide temperature range. Enhance your electronic designs with this compact, high-current capability diode that reduces power loss and boosts device reliability in various industrial and portable applications.
Get AVX SD1206S100S1R0 today—built for high efficiency, durability, and reliable performance in power circuits and high-frequency applications.
Frequently Asked Questions
Where can I buy KYOCERA AVX SD1206S100S1R0?
You can click on the BUY or RFQ button to purchase SD1206S100S1R0 from an authorized KYOCERA AVX distributor.
How do I troubleshoot issues or seek technical support for part SD1206S100S1R0?
You can download the SD1206S100S1R0 datasheet or visit the KYOCERA AVX website for support.
Who is the manufacturer of SD1206S100S1R0?
KYOCERA AVX
