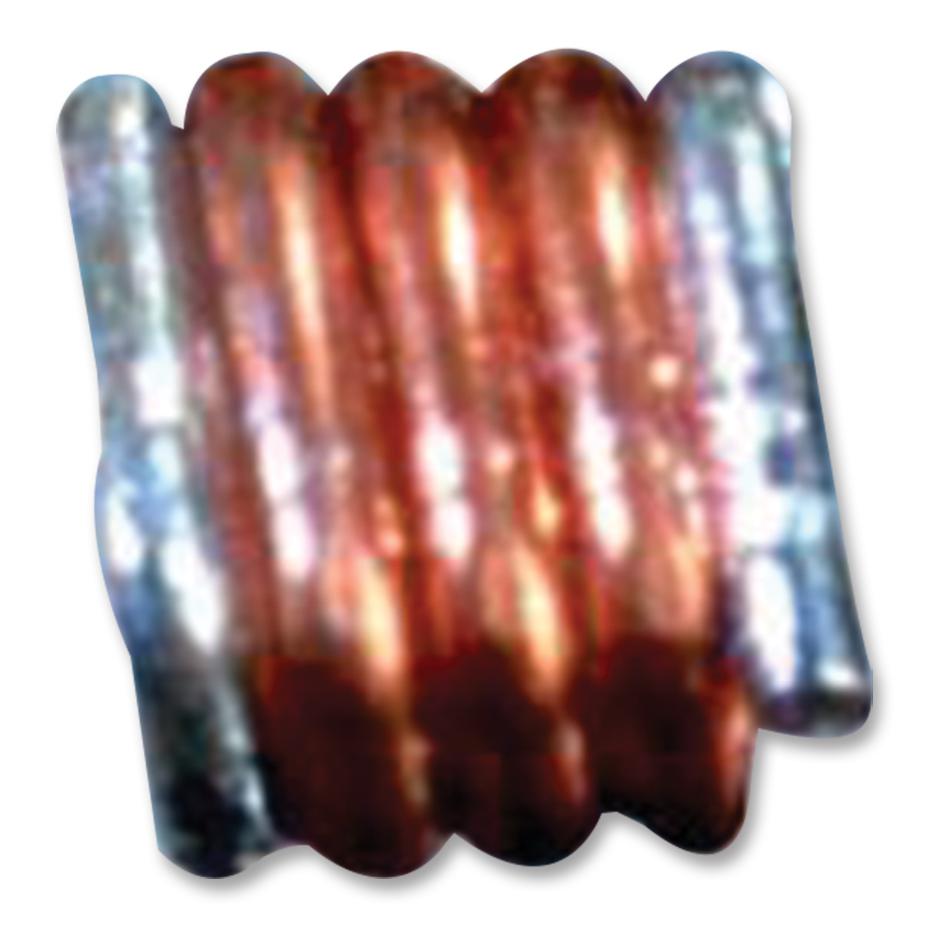

KYOCERA AVX AS0612N3GTR Square Air Core RF Inductor
The KYOCERA AVX AS Series Square Air Core RF Inductors are designed for a wide range of RF applications, including RF circuits, broadband I/O filtering, frequency selection, and impedance matching. The unique square cross-section provides improved performance and manufacturing advantages over traditional toroidal coils. These inductors offer high Q, high current handling, and excellent SRF, making them suitable for demanding applications. They are available in various sizes and inductance values to meet specific design requirements.
KYOCERA AVX AS0612N3GTR Square Air Core RF Inductor Specifications:
- Inductance Range: 5.5nH to 27.3nH
- Inductance Tolerance: 2%, 5%, 10%
- Rated Current: 2.7A, 2.9A, 4.4A
- Operating Temperature: -40˚C to +125˚C
- Termination: 96.5% Tin/3% Silver over 0.5% Copper
- Q (min): 60, 64, 90, 90, 90, 90, 100, 100, 90, 100, 100, 100, 130, 130, 90, 130, 130, 130
- Test Frequency: 400 MHz
- DCR max (mΩ): 3.4, 6, 7, 8, 9, 10, 6, 7, 6.3, 8, 9, 10, 6, 7, 7.2, 8, 9, 10, 10
- SRF (GHz): 4.9, 5.2, 4.3, 4.8, 4.4, 4, 4.6, 4, 3.6, 4.3, 4, 3.5, 5.2, 4.3, 3, 3.4, 3.7, 3.2
- Ir max (A): 2.9, 2.9, 2.9, 2.9, 2.9, 2.9, 2.7, 2.7, 2.7, 2.7, 2.7, 2.7, 4.4, 4.4, 4.4, 4.4, 4.4, 4.4, 4.4
Buy the AS0612N3GTR KYOCERA AVX Square Air Core RF Inductor | myMectronic
Purchase the KYOCERA AVX AS0612N3GTR Square Air Core RF Inductor securely and reliably through our online platform.
Buy Now
Frequently Asked Questions
Where can I buy KYOCERA AVX AS0612N3GTR?
You can click on the BUY or RFQ button to purchase AS0612N3GTR from an authorized KYOCERA AVX distributor.
How do I troubleshoot issues or seek technical support for part AS0612N3GTR?
You can download the AS0612N3GTR datasheet or visit the KYOCERA AVX website for support.
Who is the manufacturer of AS0612N3GTR?
KYOCERA AVX
