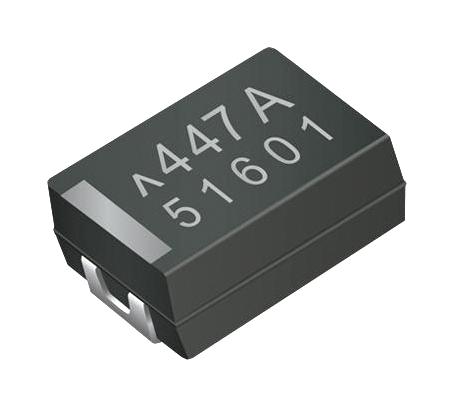

KYOCERA AVX TCME686M020R0025E conductive polymer capacitor
The TCME686M020R0025E is a conductive polymer solid electrolytic chip multianode capacitor designed for high reliability and low equivalent series resistance. Suitable for telecommunication routers and high-power DC/DC base stations, it features a volumetric efficiency, high frequency capacitance retention, and RoHS compliance. The capacitor offers a capacitance of 68 µF with a rated voltage of 25 V, operating efficiently across -55°C to +125°C. It withstands high humidity, voltage derating, and offers long-term stability with minimal parametric shifts over its lifespan.
KYOCERA AVX TCME686M020R0025E conductive polymer capacitor Specifications:
- Capacitance Range: 10uF to 1000uF
- Capacitance Tolerance: +20%
- Leakage Current DCL: 0.1CV
- Temperature Range: -55°C to +125°C
- Rated Voltage: 25V
- ESR Ratings: in milliohms, values vary by model
- Terminations: SnPb finish or pure tin options
- Dimensions (mm): Length approximately 17.0, width 12.0, height 8.0 (typical, varies by model)
- Humidity Resistance: Stable with 500 hours at 85°C and 95% humidity
- Long-term Stability: ≤15% capacitance change after 2000 hours at 125°C
- Reliability: 1% loss per 1000 hours at 85°C with specified ripple current
- Approval: RoHS compliant, RoHS Lead-Free
Buy the AVX Series Conductive Polymer Capacitor: TCME686M020R0025E
Order the AVX conductive polymer capacitor, TCME686M020R0025E, online today to benefit from its high reliability, low ESR, and wide operating temperature range. Designed for telecom and power supply sectors, this high-performance capacitor offers excellent stability, long lifespan, and RoHS compliance. Its compact size, robust construction, and low leakage current make it ideal for demanding environments. Purchase now to improve your electronic systems' efficiency and durability with this advanced, proven component available at competitive prices, backed by fast delivery.
Buy AVX TCME686M020R0025E now and experience unmatched reliability and performance for high-power electronic applications.
Frequently Asked Questions
Where can I buy KYOCERA AVX TCME686M020R0025E?
You can click on the BUY or RFQ button to purchase TCME686M020R0025E from an authorized KYOCERA AVX distributor.
How do I troubleshoot issues or seek technical support for part TCME686M020R0025E?
You can download the TCME686M020R0025E datasheet or visit the KYOCERA AVX website for support.
Who is the manufacturer of TCME686M020R0025E?
KYOCERA AVX
