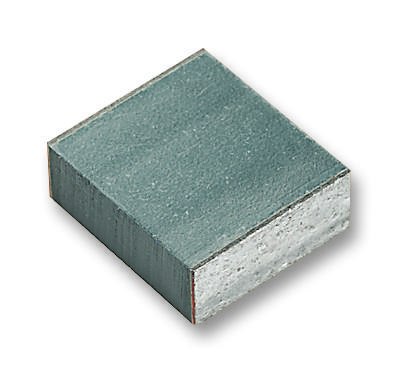

KYOCERA AVX CB027D0473JBA Film Chip Capacitor
The KYOCERA AVX CB027D0473JBA is a film chip capacitor designed for general-purpose applications requiring miniaturization and SMD capability. Constructed with a naked and stacked design using metallized polyethylene naphtalate (PEN), this capacitor boasts several advantages including high-temperature dielectric film compatibility, excellent elasticity for printed circuit board integration, self-healing properties for enhanced reliability, and superior thermal shock resistance. Typical applications include automotive systems (airbag, fuel injection calculators), telecommunications equipment (public switching systems, modems), and industrial power conversion modules. The capacitor's low dissipation factor (ESR & ESL), lack of piezoelectric effect, and availability in tape and reel format for automated placement further enhance its versatility.
KYOCERA AVX CB027D0473JBA Film Chip Capacitor Specifications:
- Climatic Category: 55/125/56
- Capacitance Range: 1nF to 4.7μF
- Tolerance on CR: ±5%, ±10%
- Nominal Voltages: 25Vdc to 630Vdc
- Test Voltage: 1.4Vr 2 sec. at 25°C
- Soldering methods: IR or vapor phase reflow (not suitable for wave soldering)
- Tangent of Loss Angle at 1kHz (DF): < 100 x 10-4
- Insulation resistance minimum IR: for C ≤ 0.33μF IR > 1000 MΩ at 20°C for 1 min. charge at 10Vdc for VR < 100Vdc and 100Vdc for VR ≥ 100Vdc for C > 0.33μF IR C > 400 sec. at 20°C for 1 min. charge at 10Vdc for VR < 100Vdc and 100Vdc for VR ≥ 100Vdc
- Temperature range: -55°C to 125°C with voltage derating of 1.25%/°C between 105°C and 125°C
- A.C. applications: For high-frequency A.C. application please check with AVX
