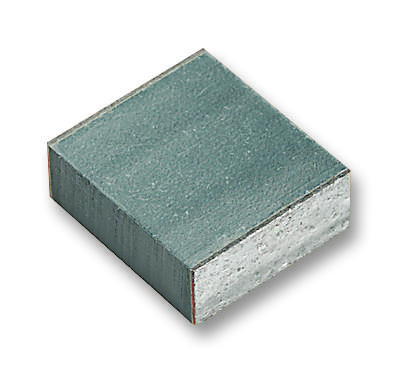

KYOCERA AVX CB047G0104JBC Film Capacitor
This high-performance film chip capacitor uses PEN dielectric with a stacked, naked construction, suitable for low voltage, miniaturized SMD applications like automotive, telecom, and industrial systems. It offers excellent thermal shock resistance, low ESR & ESL, and safety due to self-healing technology. Designed for IR or vapor phase reflow processes, it features 100% matte Sn plating and is non-polar, with available tape and reel packaging for automatic placement. Ideal for power converters, communication devices, and safety systems, ensuring reliable, long-lasting operation across climatic and temperature ranges.
KYOCERA AVX CB047G0104JBC Film Capacitor Specifications:
- Capacitance Range: AnF to 4.7uF
- Tolerance: ±25%, +10%
- Voltage Range: 20Vdc to 6380Vdc
- Insulation Resistance: IR > 1000 MΩ at 20°C for voltages below 100V
- Temperature Range: -65°C to 125°C with voltage derating of 1.25%/°C between 105°C and 125°C
- Dielectric Material: PEN (Polyethylene Naphthalate)
- Outer Layer: 100% matte Sn
- Construction: Stacked, naked film
- Applications: Automotive (Airbag, Fuel injection), Telecom (Modems, Switches), Industrial (SMPS, Power converters)
- Reflow Compatibility: IR and vapor phase, not wave soldering
- Certifications: UL Listed, CSA Certified, RoHS Compliant, MSL 3
Buy the Electronics Series CB PEN Dielectric Film Capacitor: CB047G0104JBC
Purchase your Film Capacitor with PEN dielectric today and enhance your electronic projects' reliability and performance. Our online store offers quick, secure ordering of CB Series capacitors, suitable for low voltage, miniaturized SMD designs in automotive, telecom, and industrial applications. These capacitors are built for tolerance, safety, and durability, supporting high-temperature reflow processes and providing excellent thermal shock resistance. Take advantage of our detailed specifications and fast delivery to ensure your projects meet the highest standards of quality and reliability.
Order your Electronics Series CB PEN Dielectric Film Capacitor CB047G0104JBC today and ensure your projects benefit from reliable, high-quality components.
Frequently Asked Questions
Where can I buy KYOCERA AVX CB047G0104JBC?
You can click on the BUY or RFQ button to purchase CB047G0104JBC from an authorized KYOCERA AVX distributor.
How do I troubleshoot issues or seek technical support for part CB047G0104JBC?
You can download the CB047G0104JBC datasheet or visit the KYOCERA AVX website for support.
Who is the manufacturer of CB047G0104JBC?
KYOCERA AVX
