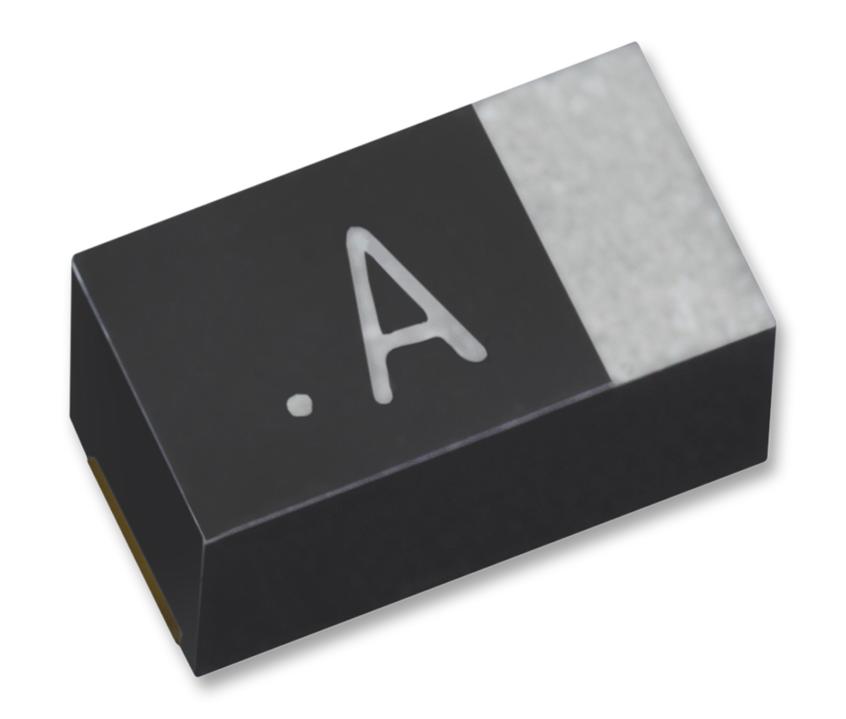

KYOCERA AVX F381A106MMA Conductive Polymer Capacitor
The F38 Series conductive polymer solid electrolytic chip capacitors are miniature, facedown surface-mount devices designed for high volumetric efficiency and low ESR. Suitable for compact electronic applications like smartphones, tablets, and wireless modules, these capacitors feature a benign failure mode, RoHS2 compliance, and a temperature range of -55°C to +105°C. With case dimensions around 1.0mm max thickness, they offer reliable performance with low leakage current, stable capacitance, and high endurance under surge and temperature stress, making them ideal for portable and high-frequency electronic devices.
KYOCERA AVX F381A106MMA Conductive Polymer Capacitor Specifications:
- Category Temperature Range: -55°C to +105°C
- Case Dimensions: 1.0mm Max. thickness, approximately 0603 size
- Capacitance Tolerance: ±20% at 120Hz
- Rated Voltage: 6.3V, 10V, 16V, 20V, 25V, 35V, 50V, 63V options
- Leakage Current: ≤ 0.01CV or 3μA, whichever is greater, after 5 minutes at rated voltage and 20°C
- ESR: Low ESR suitable for high-frequency applications
- Dissipation Factor: ≤ 200% of initial specified value at 120Hz
- Endurance: 500 hours at 85°C with no voltage applied, 30-minute temperature cycles between -55°C to +105°C
- Surge Capacity: Maintains characteristics after 1000 cycles under specified surge conditions
- Construction: Conductive polymer electrode, solid electrolytic design
- Compliance: RoHS2 directive 2011/65/EU
Buy the Buy Conductive Polymer Capacitors Part Number F381A106MMA Online
Purchase AVX conductive polymer capacitors, model F381A106MMA, online today to ensure high reliability and low ESR for your electronic projects. Ideal for smartphones, tablets, and wireless modules, these SMD chips feature low leakage, stable capacitance, and excellent endurance under temperature stress. With RoHS compliance and a compact 1.0mm maximum thickness, they are perfect for space-constrained designs. Experience fast delivery and competitive prices when you buy AVX capacitors online—boost your electronic device’s performance now.
Buy AVX F381A106MMA capacitors now and experience unmatched reliability and performance for high-frequency portable electronics.
Frequently Asked Questions
Where can I buy KYOCERA AVX F381A106MMA?
You can click on the BUY or RFQ button to purchase F381A106MMA from an authorized KYOCERA AVX distributor.
How do I troubleshoot issues or seek technical support for part F381A106MMA?
You can download the F381A106MMA datasheet or visit the KYOCERA AVX website for support.
Who is the manufacturer of F381A106MMA?
KYOCERA AVX
