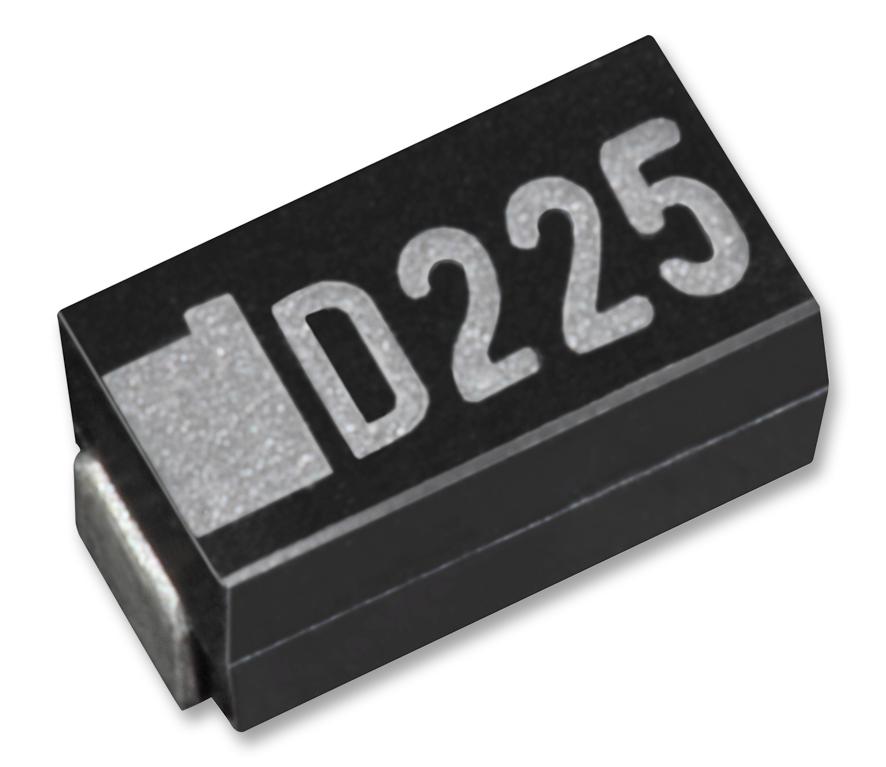

KYOCERA AVX F971A106KAA Chip Capacitors
The F97 Series Resin-Molded Chip Capacitors feature improved reliability with J-lead design, suitable for automotive and industrial electronics. They operate within a category temperature range of -55°C to +125°C, with high stability and low ESR at 100kHz. These lead-free, RoHS-compliant capacitors offer capacitance tolerance of 210%, with excellent endurance, leakage current, and dissipation factors. They are ideal for engine ECUs, industrial equipment, and surge applications, with robust solderability, thermal cycling, and mechanical strength for demanding environments.
KYOCERA AVX F971A106KAA Chip Capacitors Specifications:
- Category Temperature Range: -55°C to +125°C
- Rated Voltage: 6.3V to 35V
- Capacitance Range: 0.47μF to 22μF
- Capacitance Tolerance: ±10% (Code K)
- Leakage Current: Not more than 0.01CV or 0.5μA at 20°C after 1 minute
- Endurance: -55°C to +125°C for 1000 hours at rated voltage, capacitance within 10%
- Dissipation Factor: Less than or equal to initial specified value, within 10%
- Resistance to Capacitance Change: Within ±5% after temperature and humidity cycling
- Soldering: 245°C for 10 seconds immersion, continuity maintained
- Mechanical: Resistance to pressure load, shear, and terminal strength testing
- Compliance: RoHS 2, AEC-Q200
- Application: Automotive electronics, industrial equipment, surge applications
Buy the AVX Series F97 Capacitors: F971A106KAA
Purchase AVX F97 Series F971A106KAA chip capacitors online today. Designed for high reliability, these RoHS-compliant, resin-molded J-lead capacitors ensure durability in automotive and industrial electronics. With a temperature range from -55°C to +125°C, they provide low ESR, excellent endurance, and minimal leakage current. Ideal for surge protection, engine control units, and demanding environments, these capacitors combine precision with long-lasting performance. Order now for fast delivery and guaranteed quality fulfillment.
Get AVX F97 Series F971A106KAA today—built for automotive and industrial reliability with excellent thermal stability and low ESR.
Frequently Asked Questions
Where can I buy KYOCERA AVX F971A106KAA?
You can click on the BUY or RFQ button to purchase F971A106KAA from an authorized KYOCERA AVX distributor.
How do I troubleshoot issues or seek technical support for part F971A106KAA?
You can download the F971A106KAA datasheet or visit the KYOCERA AVX website for support.
Who is the manufacturer of F971A106KAA?
KYOCERA AVX
