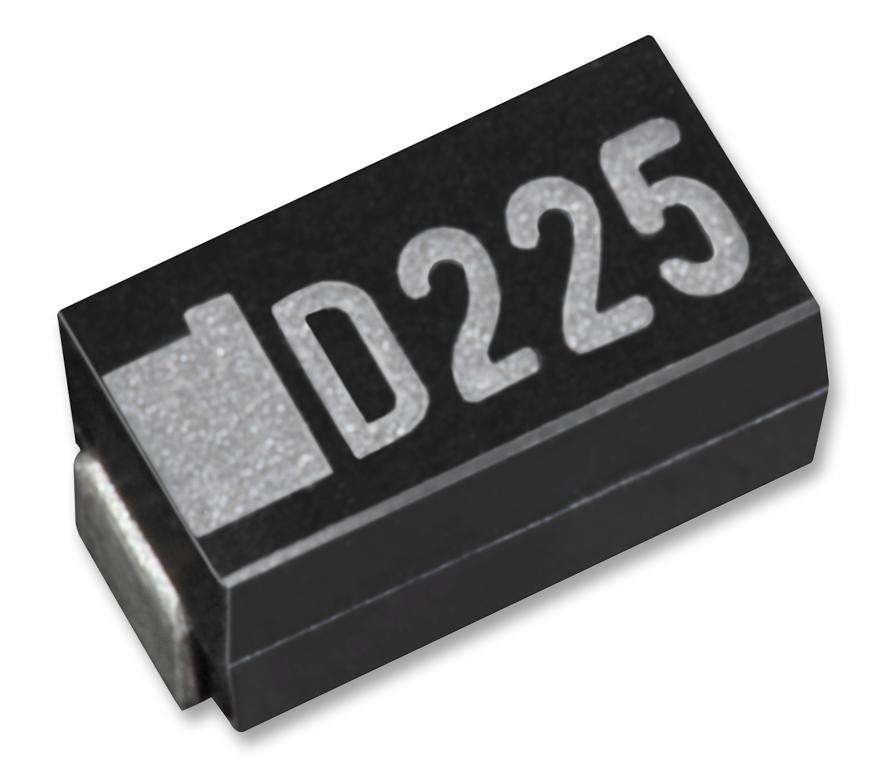

KYOCERA AVX F971A107MCCHT3 High Temperature Chip Capacitor
The F97-HTS3 series is a high-temperature resin-molded chip capacitor designed for reliability in demanding industrial and automotive applications. Rated for 135°C, it ensures stable performance in environments with high thermal stress, making it suitable for engine control units, transmission systems, and industrial equipment. These capacitors are AEC-Q200 qualified, RoHS compliant, and characterized by low failure rates of 0.5% over 1000 hours. They feature stable capacitance over temperature, excellent moisture resistance, and are designed to withstand harsh soldering processes, ensuring long-term durability.
KYOCERA AVX F971A107MCCHT3 High Temperature Chip Capacitor Specifications:
- Category Temperature Range: -65 to +135°C
- Rated Temperature: +95°C
- Capacitance Tolerance: ±20%, +10% at 120Hz
- Leakage Current: Not more than 0.01CV or 0.5μA at 20°C, not more than 0.1CV or 5μA at 95°C, not more than 0.125CV or 6.3μA at 135°C
- Capacitance Change: +15% max at +135°C, +10% max at +95°C, -10% max at -55°C
- Dimensions: 1.202 mm x 1.602 mm x 0.047 mm (for case size 3202020)
- Flammability: UL 94V-0
- Compliance: RoHS, AEC-Q200 qualified
- Failure Rate: 0.5% over 1000 hours
- Solder Resistance: 260°C for 5 seconds
- Moisture Sensitivity Level: MSL 1
- Construction: Resin-molded chip with stable electrical characteristics under thermal and environmental stresses
Buy the AVX F97-HTS3 Reliable High Temperature Capacitor for Industrial Applications
Get the AVX F97-HTS3 high-temperature chip capacitor online now and enhance your project's durability. Engineered for environments up to 135°C, this capacitor provides excellent reliability, moisture resistance, and robust performance for automotive and industrial electronics. Perfect for engine control units, transmission systems, and harsh industrial applications. With easy online ordering, secure packaging, and fast delivery, ensure your designs meet the highest standards of quality and environmental compliance. Purchase today to experience dependable performance in your critical systems.
Order your AVX F97-HTS3 series high-temperature capacitor today and ensure your industrial and automotive electronics operate reliably under extreme conditions.
Frequently Asked Questions
Where can I buy KYOCERA AVX F971A107MCCHT3?
You can click on the BUY or RFQ button to purchase F971A107MCCHT3 from an authorized KYOCERA AVX distributor.
How do I troubleshoot issues or seek technical support for part F971A107MCCHT3?
You can download the F971A107MCCHT3 datasheet or visit the KYOCERA AVX website for support.
Who is the manufacturer of F971A107MCCHT3?
KYOCERA AVX
