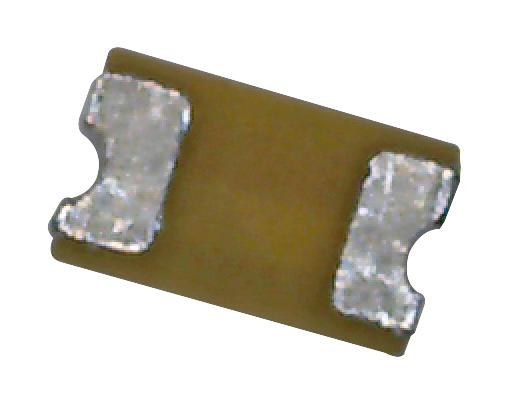

KYOCERA AVX HLC02120HTTR High Current RF Inductor
The high current multilayer organic inductor supports mobile communications, satellite applications, GPS, and RF matching networks. Its low profile 0402 size boasts high current handling, high Q, and stability thanks to organic materials. With RoHS compliant Sn finish, it guarantees excellent solderability and expansion match to FR4 PCB. Suitable for high frequency, low parasitics, and heat dissipation needs, this surface-mount inductor features tight tolerance, tested reliability, and operates between -55°C to +125°C, making it ideal for compact, high-performance RF and wireless applications.
KYOCERA AVX HLC02120HTTR High Current RF Inductor Specifications:
- Case Size: 0402 (1.00±0.10 mm x 0.58±0.075 mm)
- Operating Temperature: -55°C to +125°C
- Material: Organic dielectric with RoHS compliant Sn finish
- Inductance Range: 20nH to 47nH, precise values include 20.1nH, 20.2nH, 25nH, 33nH, 47nH, 150nH, and higher
- SRF: Up to 2.4 GHz depending on inductance and frequency
- Q Factor: Typically high, with minimal parasitics
- Current Handling: Significant current rating, specifics vary by inductance
- DC Resistance: Low, supporting high current performance
- Size Tolerance: ±0.2nH or ±0.5nH as specified
- Reliability Testing: Meets JEDEC and MIL standards
- Packaging: Tape and Reel, expansion matched to PCB
- Finish: RoHS compliant Sn (tin) plating
Buy the AVX HLC02120HTTR – Reliable RF High Current Inductor for Industrial Applications
Enhance your electronic designs with the high current organic inductor designed for RF, GPS, satellite, and wireless applications. Featuring high Q, low parasitics, and expansion matched to PCB, this surface-mount component assures stability across -55°C to +125°C temperatures. RoHS compliant and tested per JEDEC standards, it offers excellent solderability and reliability for compact, high-performance systems. Select from various inductance values with tape and reel packaging for seamless integration into your projects. Order online today and improve your device’s efficiency and robustness.
Order your AVX Series HLC02120HTTR high current organic inductor today and ensure your RF and wireless projects benefit from dependable, high-performance components.
Frequently Asked Questions
Where can I buy KYOCERA AVX HLC02120HTTR?
You can click on the BUY or RFQ button to purchase HLC02120HTTR from an authorized KYOCERA AVX distributor.
How do I troubleshoot issues or seek technical support for part HLC02120HTTR?
You can download the HLC02120HTTR datasheet or visit the KYOCERA AVX website for support.
Who is the manufacturer of HLC02120HTTR?
KYOCERA AVX
