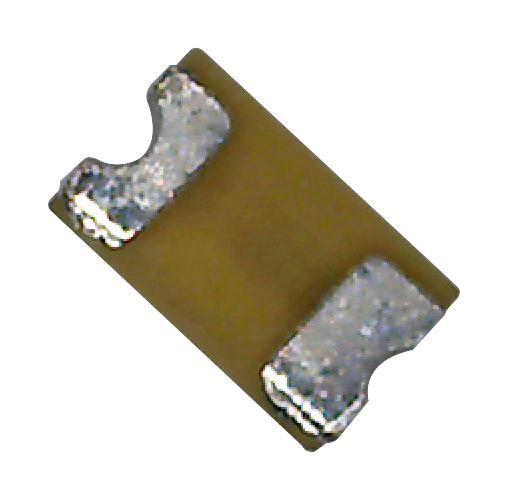

KYOCERA AVX HLC02150HTTR High Current Inductor
The High Current Inductor is a 0402 surface-mount component designed for high current applications in mobile communications, satellite, GPS, and collision avoidance systems. It features a multilayer organic construction (US patent 6,987,307), offering 50% higher current handling than similar multilayer ceramic inductors, with high Q and stability over frequency. It operates from -55°C to +125°C, with low parasitics, high SRF, and RoHS-compliant Sn finish. Its compact size and expansion-matched design make it ideal for high-frequency, reliable circuits.
KYOCERA AVX HLC02150HTTR High Current Inductor Specifications:
- Size: 0402 (1.00+0.10 mm x 0.58+0.075 mm)
- Operating Temperature: -55°C to +125°C
- Material: Organic multilayer construction with low loss materials
- Inductance Range: 20.1 nH to 20.204 nH (tolerance options available)
- Maximum SRF: 2.4 GHz (2400 MHz)
- Maximum DC Resistance: As specified per model, typically low
- Current Handling: Significantly higher than similar ceramic inductors, up to high amperage
- Finish: RoHS-compliant Sn coating
- Application: RF matching, mobile communications, satellite, GPS, collision avoidance, wireless LAN
- Dimensions: 1.00 mm x 0.58 mm x 0.352 mm
- Testing: 100% electrical and visual inspection, JEDEC and mil standards compliance
Buy the AVX High Current Inductor INA – Reliable RF for Industrial Applications
Order the High Current Inductor today to ensure your RF and mobile communication systems operate with maximum efficiency, stability, and durability. This surface-mount 0402 component provides outstanding high current handling, low parasitic effects, and high Q performance, making it ideal for satellite, GPS, collision avoidance, and wireless LAN applications. Designed with advanced multilayer organic technology, it offers excellent solderability, expansion match to PCB, and RoHS compliance. Secure your supply with quick online ordering and enhance your circuit reliability and performance today.
Buy AVX High Current Inductor INA now and experience unmatched reliability and exceptional high-frequency performance in your RF circuits.
Frequently Asked Questions
Where can I buy KYOCERA AVX HLC02150HTTR?
You can click on the BUY or RFQ button to purchase HLC02150HTTR from an authorized KYOCERA AVX distributor.
How do I troubleshoot issues or seek technical support for part HLC02150HTTR?
You can download the HLC02150HTTR datasheet or visit the KYOCERA AVX website for support.
Who is the manufacturer of HLC02150HTTR?
KYOCERA AVX
