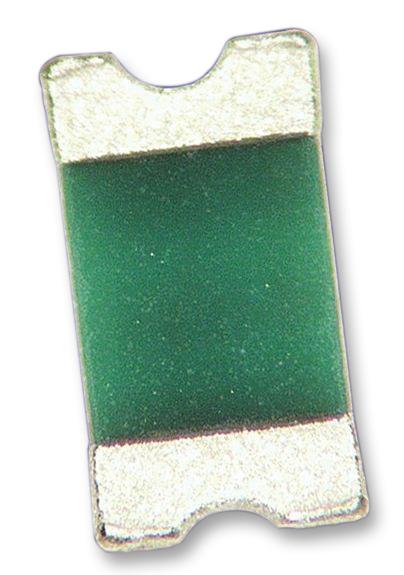

KYOCERA AVX ML03V13R9BAT2A RF Capacitors
Multi-Layer Organic Capacitors (MLOC) utilize patented multilayer low-loss organic (MLO™) technology, offering low ESR, high SRF, and excellent performance at frequencies above 1 GHz. These polymer-based capacitors feature high conductivity copper interconnects in a multilayer configuration, enabling fabrication on large substrates with laser direct imaging for better cost efficiency and tolerance control. Ideal for RF power amplifiers, filters, and low noise amplification, they provide tight tolerances, low dielectric absorption, and expansion-matched reliability with printed circuit boards for advanced RF and high-frequency applications.
KYOCERA AVX ML03V13R9BAT2A RF Capacitors Specifications:
- Case Size: 0603 (0.063 ± 0.004 inches long, 0.033 ± 0.004 inches wide, 0.025 ± 0.004 inches thick)
- Capacitance Range: from 0.2 pF to 20 pF with code-based values (e.g., 13 = 13 pF)
- Voltage Ratings: 50V, 250V, 500V options
- Temperature Coefficient: 230 ppm/°C (code 1)
- Material: Organic polymer with high conductivity copper interconnects
- Frequency Range: supports frequencies well above 1 GHz
- Self Resonance: high SRF due to low ESR
- Dielectric Absorption: 0.0015%
- Mechanical Durability: withstands soldering and environmental stress tests
- Environmental Resistance: resistant to damp heat, temperature cycling, and solder heat
- Reel/Packaging: 7-inch reel, 3,000 pcs; compliant with EIA RS481
- Reliability: extensive testing under MIL-STD-202F, IEC standards, and IPC guidelines for quality assurance
Buy the Buy AVX Multi-Layer Organic Capacitors Part Number ML03V13R9BAT2A Online
Order AVX RF capacitors online today for precise, high-performance filtering and tuning in RF power amplifiers, filters, and instrumentation. Engineered with low ESR, high self-resonance, and tight tolerance, these multilayer organic capacitors ensure reliability and stability for demanding high-frequency applications. Their advanced construction allows support above one GHz, making them ideal for modern RF circuit design. Enjoy fast shipping, competitive pricing, and assured quality with our seamless online purchasing process, ensuring your device’s optimal performance and longevity.
Get AVX ML03V13R9BAT2A today—built for high-frequency RF applications with low ESR and high SRF for reliable performance.
Frequently Asked Questions
Where can I buy KYOCERA AVX ML03V13R9BAT2A?
You can click on the BUY or RFQ button to purchase ML03V13R9BAT2A from an authorized KYOCERA AVX distributor.
How do I troubleshoot issues or seek technical support for part ML03V13R9BAT2A?
You can download the ML03V13R9BAT2A datasheet or visit the KYOCERA AVX website for support.
Who is the manufacturer of ML03V13R9BAT2A?
KYOCERA AVX
