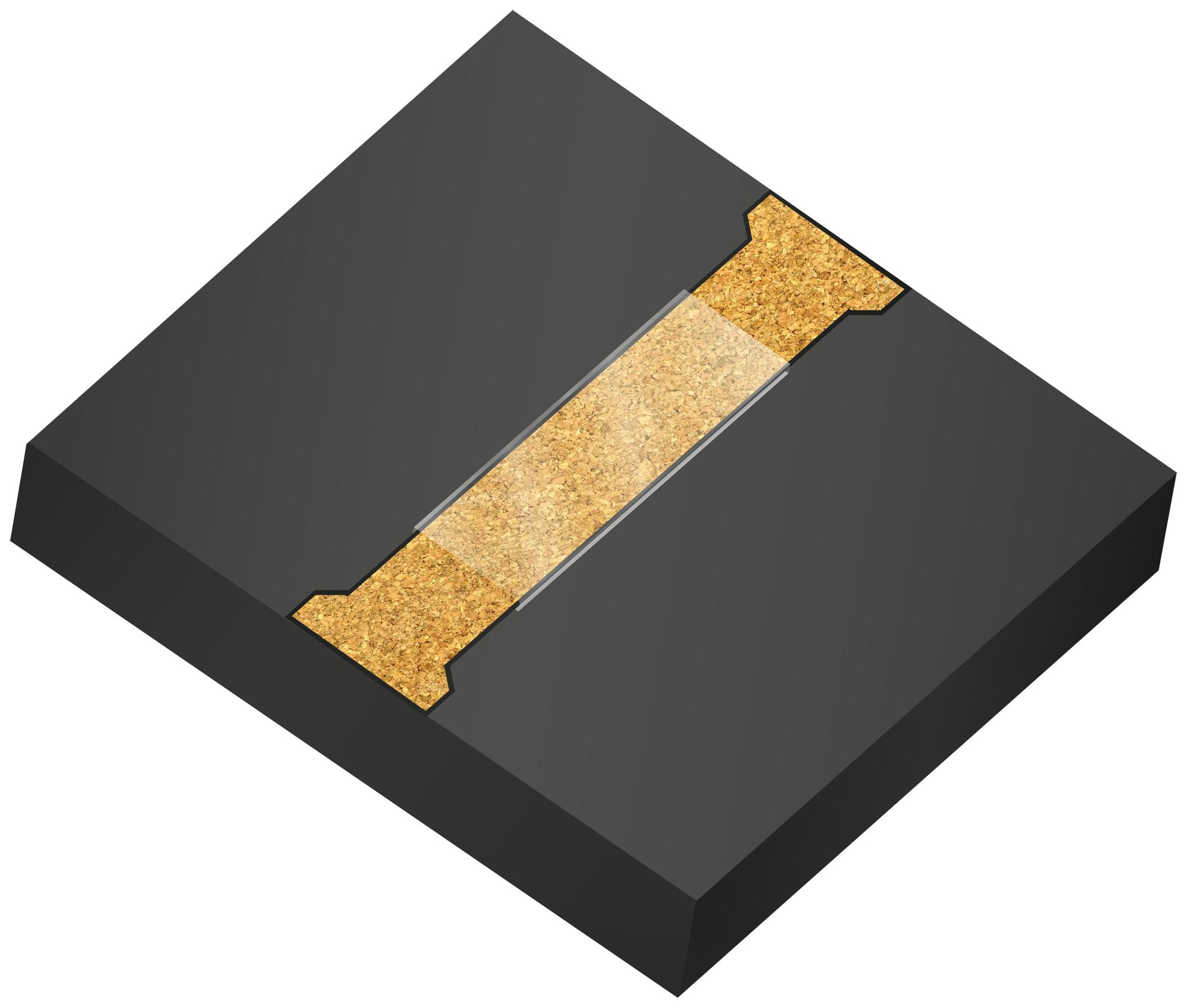

KYOCERA AVX MV0802CA150MAAW Thin Film MIM Capacitor
This high-performance thin film Metal-Insulator-Metal capacitor features a transmission line wire bond pad structure with backside ground, suitable for RF and microwave applications. Made with copper conductors and gold metallization, it offers excellent conductivity, low dissipation factor, and RoHS compliance. Available on quartz, alumina, and glass substrates, it ensures minimal losses and robust durability. Designed for DC blocking, high-frequency links, and RF circuits, the capacitor provides customizable dimensions based on transmission line specifications, making it ideal for advanced electronic and communication systems.
KYOCERA AVX MV0802CA150MAAW Thin Film MIM Capacitor Specifications:
- Capacitor Range: 0.3 - 50 pF
- Tolerance: +20%
- Rated Voltage: 100 WVDC
- Capacitance: 8pF, 15pF, and other values
- Substrate Materials: Quartz, Alumina, Glass
- Dimensions: Size varies based on transmission line design, typical lengths 20-120 mils, widths 20-40 mils, thickness 5-10 mils
- Termination: Gold wire bond
- Backside Ground: Yes
- RoHS Compliant: Yes
- Disipation Factor: <0.1%
- Test Methods: MIL-STD-883-2011.8, LIFE 1000 hrs @ 125°C 2x rated voltage
Buy the AVX Series Thin Film MIM Capacitor: MV0802CA150MAAW
Order the AVX MV0802CA150MAAW Thin Film Metal-Insulator-Metal capacitor online today to enhance your RF and microwave systems. This advanced component offers high stability, low dissipation, and excellent conductivity with gold metallization, making it ideal for high-frequency applications. Suitable for various substrates including quartz and alumina, it ensures minimal signal loss and reliable performance. With customizable dimensions and RoHS compliance, purchasing online guarantees quick delivery and trusted quality for your electronic and communication device needs.
Buy AVX MV0802CA150MAAW thin film MIM capacitor now and experience unmatched reliability and performance for RF and microwave applications.
Frequently Asked Questions
Where can I buy KYOCERA AVX MV0802CA150MAAW?
You can click on the BUY or RFQ button to purchase MV0802CA150MAAW from an authorized KYOCERA AVX distributor.
How do I troubleshoot issues or seek technical support for part MV0802CA150MAAW?
You can download the MV0802CA150MAAW datasheet or visit the KYOCERA AVX website for support.
Who is the manufacturer of MV0802CA150MAAW?
KYOCERA AVX
