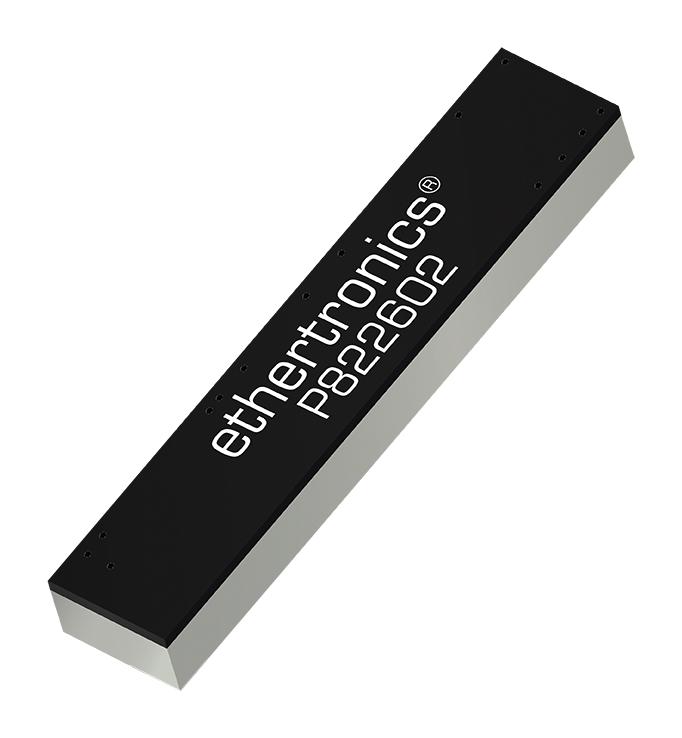

KYOCERA AVX P822602 Broadband Embedded Antenna
The P822602 is a mirrored version of the universal broadband embedded antenna designed for LTE, 5G, and LPWA applications. Utilizing Isolated Magnetic Dipole™ technology, it offers high performance, minimal interference, and compact size with dimensions of 49.6 x 8.0 x 3.2 mm. Suitable for IoT, industrial, automotive, and healthcare applications, this SMT-mounted antenna features 140 x 50 mm PCB area, broadband frequency coverage from 698 to 3800 MHz, high efficiency, and linear polarization. It provides reliable connectivity for modern wireless systems with low VSWR and robust construction, ensuring quick deployment and compliance with ROHS requirements.
KYOCERA AVX P822602 Broadband Embedded Antenna Specifications:
- Dimensions: 49.6 x 8.0 x 3.2 mm
- Frequency Range: 698 - 960 MHz, 1710 - 2200 MHz, 3300 - 3800 MHz
- Peak Gain: 2.6 dBi (low band), 4.4 dBi (high band)
- Efficiency: 76% (low band), 52% (high band)
- VSWR Match: < 2.5:1
- Polarization: Linear
- Power Handling: 2 Watt CW
- Impedance: 50 Ω unbalanced
- Mounting: SMT (P&P)
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -45°C to +75°C
- Weight: 2.63 grams
- PCB Area: 140 x 50 mm
- Compatible with LTE Bands 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 17, 18, 19, 20, 26, 28, 38, 40, 41, 42, 43, 48, 49, 50, 66, 71, 77, 78, 79
- RoHS Compliant
Buy the Ethertronics P822602 – Reliable LTE/5G/LPWA Antenna for Industrial Applications
Secure your devices with the P822602 broadband embedded antenna by Ethertronics. This high-performance, compact antenna covers LTE, 5G, and LPWA bands from 698 to 3800 MHz. Its IMD technology ensures minimal interference and better connectivity, making it ideal for IoT, industrial, automotive, and healthcare applications. Easy to mount with SMT, it guarantees fast deployment, high efficiency, and durability. Reliability, low VSWR, and compliance with RoHS enhance your product development and integration process, ensuring seamless wireless communication.
Buy Ethertronics P822602 now and experience unmatched reliability and performance for modern wireless connectivity in IoT, automotive, and healthcare systems.
Frequently Asked Questions
Where can I buy KYOCERA AVX P822602?
You can click on the BUY or RFQ button to purchase P822602 from an authorized KYOCERA AVX distributor.
How do I troubleshoot issues or seek technical support for part P822602?
You can download the P822602 datasheet or visit the KYOCERA AVX website for support.
Who is the manufacturer of P822602?
KYOCERA AVX
