KYOCERA AVX 1812CC104KAZ2A High Voltage Capacitors
The high voltage FLEXITERM® multilayer ceramic chips are designed for applications requiring 600V to 5000V, including snubbers in power converters, resonators in SMPS, and high voltage coupling. These capacitors feature low ESRs at high frequencies, low leakage, and small size, with enhanced mechanical flexure and temperature cycling performance thanks to the FLEXITERM® layer. Available in various sizes such as 0805, 1206, 1812, among others, with dielectric types including NPO (COG) and X7R, they are ideal for high-voltage, high-reliability circuits requiring precise capacitance values and reflow soldering compatibility.
KYOCERA AVX 1812CC104KAZ2A High Voltage Capacitors Specifications:
- Capacitance Range: 10 pF to 0.82 μF depending on size
- Voltage Range: 600V to 5000V DC
- Dielectric Types: NPO (COG), X7R
- Size Options: 0805, 1206, 1812, 2220, 2500, 1825
- Size Dimensions: Lengths from 2.10 mm to 5.70 mm, widths from 1.25 mm to 6.30 mm, thickness up to 3.40 mm
- Temperature Range: -55°C to +125°C
- Capacitance Tolerance: ±5% (X7R), ±1% (NPO)
- Maximum ESR: At 50 mA current, low ESR at high frequencies
- Termination: 100% tin-plated (RoHS compliant)
- Soldering: Reflow and Wave soldering compatible

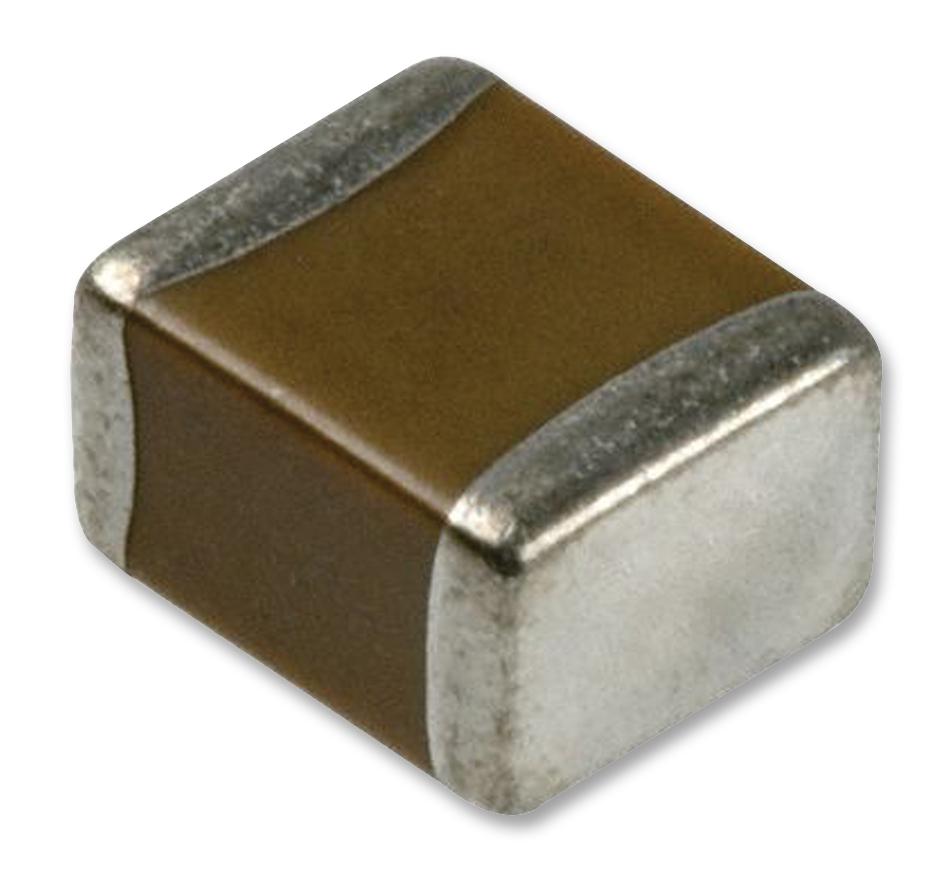

Buy the Buy AVX High Voltage Capacitors Part Number 1812CC104KAZ2A Online
Enhance your high-voltage circuits with AVX high voltage capacitors. Designed for 600V-5000V applications, these capacitors feature low ESR, small size, and robust mechanical durability with FLEXITERM® technology. Ideal for snubbers, resonators, and coupling in power converters and SMPS, they are available in various sizes and dielectric types like NPO and X7R. Their reflow and wave soldering compatibility make them perfect for high-reliability, demanding environments, ensuring your projects operate safely and efficiently.
Order your AVX High Voltage Capacitors Part Number 1812CC104KAZ2A today and ensure reliable high-voltage performance in your power supply designs.
Frequently Asked Questions
Where can I buy KYOCERA AVX 1812CC104KAZ2A?
You can click on the BUY or RFQ button to purchase 1812CC104KAZ2A from an authorized KYOCERA AVX distributor.
How do I troubleshoot issues or seek technical support for part 1812CC104KAZ2A?
You can download the 1812CC104KAZ2A datasheet or visit the KYOCERA AVX website for support.
Who is the manufacturer of 1812CC104KAZ2A?
KYOCERA AVX
