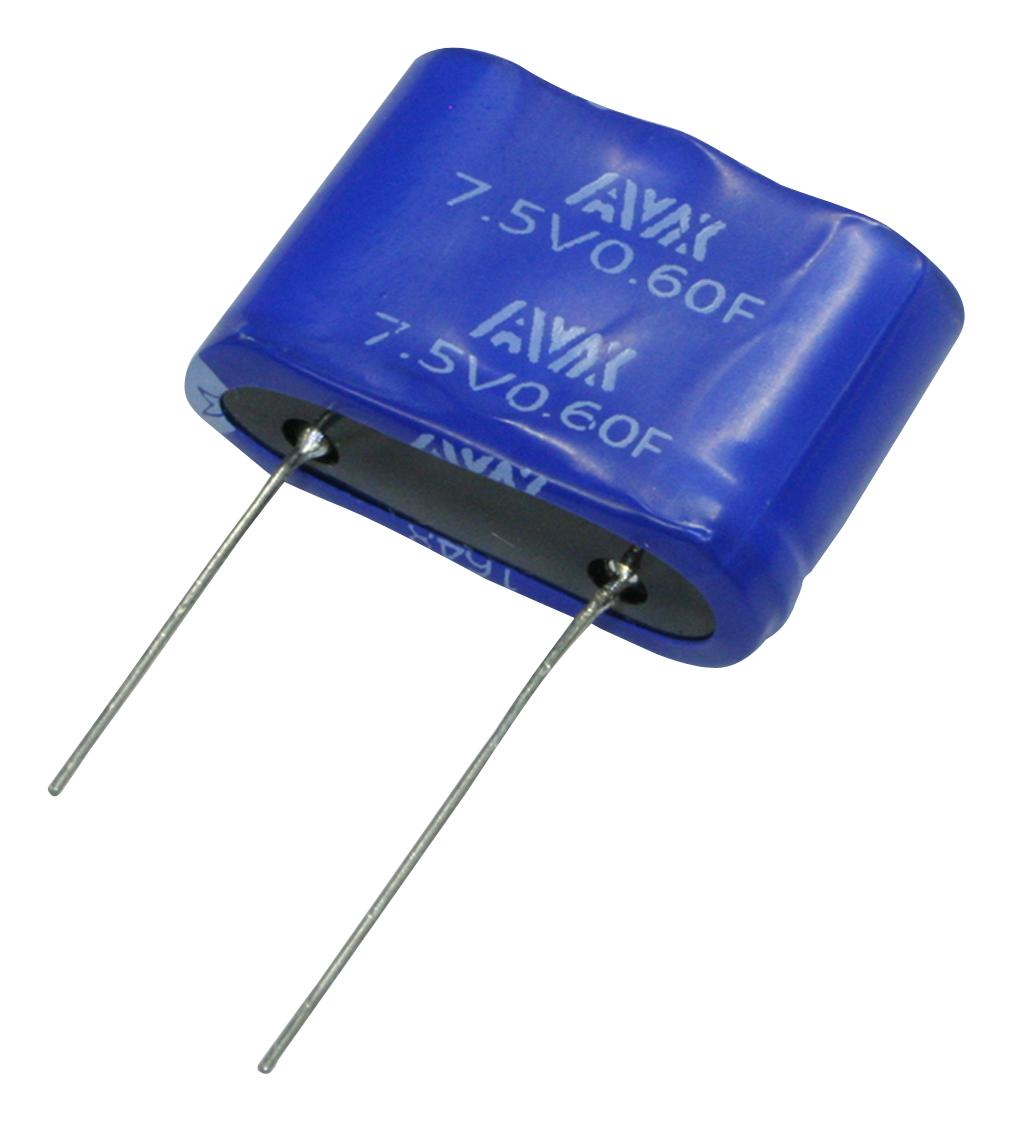

KYOCERA AVX SCMR22D155PSBB0H Supercapacitor Module
The SCM Series series-connected supercapacitor modules offer high reliability and excellent pulse power handling in elevated temperatures and high humidity. They feature moisture resistance, low ESR, and low leakage current, making them ideal for energy harvesting, UPS backup, remote metering, and industrial applications. Designed with epoxy-filled plastic packaging, these modules withstand vibration and humidity, providing extended back-up times, longer battery life, and instant power pulses. Suitable for hybrid batteries, environmental controls, and solid-state drives, they ensure dependable operation in demanding environments.
KYOCERA AVX SCMR22D155PSBB0H Supercapacitor Module Specifications:
- Diameter: 9.5 mm
- Length: 16 mm to 24 mm
- Voltage: 5.0 V or 5.4 V (rated)
- Capacitance: 16 F to 215 F depending on model
- Tolerance: +100% / -0%
- Temperature Range: -40°C to +85°C with derating, -40°C to +65°C without derating
- Leakage Current: Low leakage specifications
- ESR: Low ESR, typically less than initial spec value
- Life Cycle: 500,000 cycles at +25°C
- Soldering: Compatible with wave, reflow, and hand soldering methods following recommended guidelines
- Certifications: RoHS, UL810A, Reach, Halogen Free
- Mechanical: Plastic epoxy-filled, moisture resistant, available with straight or bent leads
- Operating Conditions: Avoid high temperature/humidity environments, store below 70°C/40% RH
- Safety: Discharge voltage to below 0.1V after use, avoid over-voltage and physical damage
Buy the AVX SCM Series – Reliable Supercapacitor Modules for Industrial Applications
Discover AVX supercapacitor modules designed for demanding industrial environments, offering high reliability, low ESR, and excellent pulse power handling. Perfect for backup systems, energy harvesting, and environmental controls, these modules deliver extended operational life and dependable performance. Easy to integrate with PCB soldering, they meet strict safety standards and are RoHS and UL810A compliant. Enhance your energy storage solutions today by purchasing these high-performance supercapacitors online and secure reliable, long-lasting power for your critical applications.
Buy AVX SCM series supercapacitor modules now and ensure reliable energy storage and pulse power for industrial and backup applications.
Frequently Asked Questions
Where can I buy KYOCERA AVX SCMR22D155PSBB0H?
You can click on the BUY or RFQ button to purchase SCMR22D155PSBB0H from an authorized KYOCERA AVX distributor.
How do I troubleshoot issues or seek technical support for part SCMR22D155PSBB0H?
You can download the SCMR22D155PSBB0H datasheet or visit the KYOCERA AVX website for support.
Who is the manufacturer of SCMR22D155PSBB0H?
KYOCERA AVX
