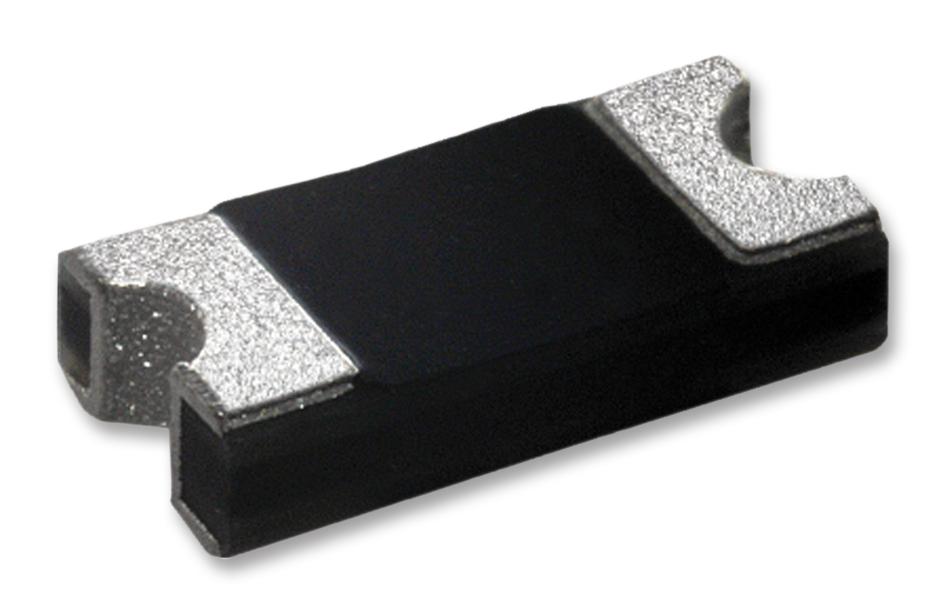

KYOCERA AVX SD1206S020S1R0 Schottky Diode
The SD1206S020S1R0 is a lead-less Schottky barrier rectifier diode in a compact 1206 surface-mount package. It offers low forward voltage, high current capability up to 2A, and excellent heat transfer. Designed for high-frequency rectification and reverse bias protection in portable and power supply applications, it features precise electrical characteristics with a maximum reverse voltage of 20V and a surge current of 40mA. Its halogen-free, UL 94V-0 class package ensures safe, reliable performance in demanding electronic circuits.
KYOCERA AVX SD1206S020S1R0 Schottky Diode Specifications:
- Package Type: 1206 surface-mount
- Maximum Reverse Voltage: 20V
- Maximum Forward Current: 2A
- Surge Current: 40mA
- Forward Voltage: Typ. 0.47V, Max. 0.55V at 2A
- Reverse Current: Max. 0.02µA at 20V
- Operating Temperature Range: -55°C to 125°C
- Storage Temperature Range: -55°C to 150°C
- Material: Halogen-free, UL 94V-0 compliant package
- Terminations: 100% Sn plated, solderable
- Application: High-frequency rectification, reverse bias protection in portable devices
Buy the AVX SD1206S020S1R0 – Reliable Schottky Diode for Industrial Applications
Purchase the AVX SD1206S020S1R0 online today—designed for high current capacity, low forward voltage, and reliable high-frequency rectification. Its compact 1206 package makes it suitable for space-constrained applications including power supplies and reverse bias protection. With a maximum reverse voltage of 20V and surge current of 40mA, this diode ensures efficient energy transfer with minimal power loss. Halogen-free and UL certified, it offers safe, durable, and environmentally friendly performance, ideal for professional electronic circuit design and manufacturing.
Get AVX SD1206S020S1R0 today—built for precision and long-lasting durability in power and high-frequency circuits.
Frequently Asked Questions
Where can I buy KYOCERA AVX SD1206S020S1R0?
You can click on the BUY or RFQ button to purchase SD1206S020S1R0 from an authorized KYOCERA AVX distributor.
How do I troubleshoot issues or seek technical support for part SD1206S020S1R0?
You can download the SD1206S020S1R0 datasheet or visit the KYOCERA AVX website for support.
Who is the manufacturer of SD1206S020S1R0?
KYOCERA AVX
