KYOCERA AVX SD2010S040S3R0 Schottky Barrier Rectifier Diode
This lead-less chip Schottky barrier rectifier diode offers high efficiency with low forward voltage, high current capability, and excellent heat transfer. Suitable for switch mode power supplies, high frequency rectification, and reverse bias protection, it features a compact SMD design in various sizes including 0603, 0805, 1206, and 2010. The device has a wide operating temperature range from -55°C to 125°C, is RoHS compliant, halogen-free, with solderable tin-plated terminations, making it ideal for portable and high-performance electronic applications.
KYOCERA AVX SD2010S040S3R0 Schottky Barrier Rectifier Diode Specifications:
- Size options: 0603, 0805, 1206, 2010, 2114, 3220
- Maximum forward current: up to 3A (varies by size)
- Maximum reverse voltage: 20V to 150V depending on model
- Forward Voltage Vf: typ. 0.47V at 3A, max. 0.55V
- Reverse bias: -55°C to 125°C operating temperature, -55°C to 150°C storage temperature
- Package: Lead-less chip, surface mount, 100% Sn plated solderable terminations
- Material: UL 94V-0 class, halogen free
- Thermal resistance: RthJA, RthJL specified per model
- Peak Surge Current: up to 100mA at specified sizes

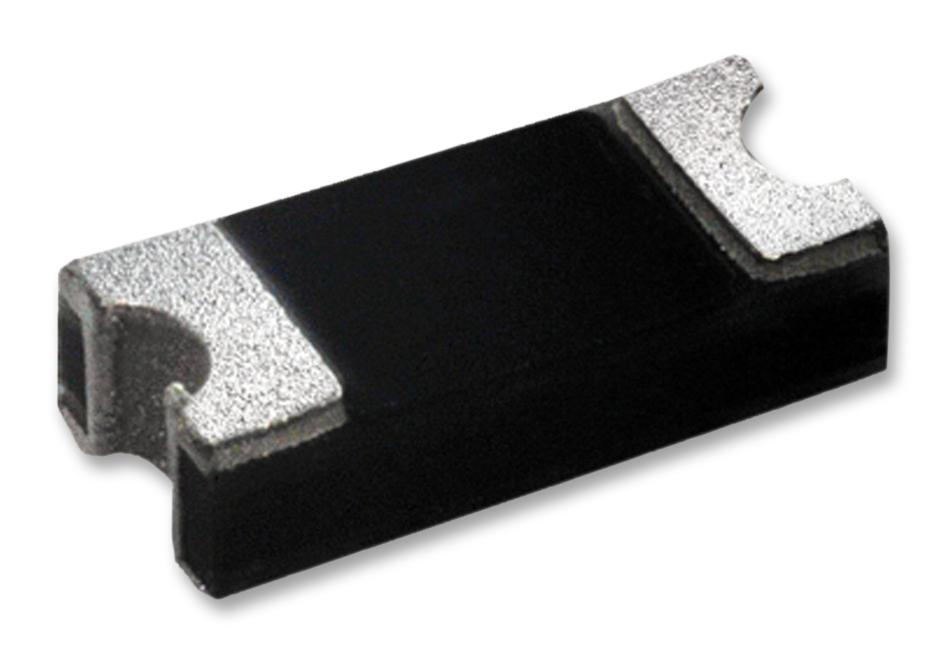

Buy the AVX Series Schottky Diode: SD2010S040S3R0
Order the AVX Schottky Barrier Rectifier Diode SD2010S040S3R0 online today to enjoy high efficiency, low forward voltage, and superior heat transfer. Its lead-less chip design ensures easy surface-mount assembly for compact electronic devices. Suitable for power supplies, high-frequency rectification, and reverse protection, this diode features RoHS compliance, halogen-free construction, and tin-plated solderable terminations. Whether designing portable batteries or switching power supplies, this diode guarantees optimal performance, durability, and energy efficiency, making it an essential component for advanced electronic systems and reliable device manufacturing.
Buy AVX Schottky Barrier Rectifier Diode SD2010S040S3R0 now and experience unmatched reliability and performance in high-current, low-loss applications.
Frequently Asked Questions
Where can I buy KYOCERA AVX SD2010S040S3R0?
You can click on the BUY or RFQ button to purchase SD2010S040S3R0 from an authorized KYOCERA AVX distributor.
How do I troubleshoot issues or seek technical support for part SD2010S040S3R0?
You can download the SD2010S040S3R0 datasheet or visit the KYOCERA AVX website for support.
Who is the manufacturer of SD2010S040S3R0?
KYOCERA AVX
