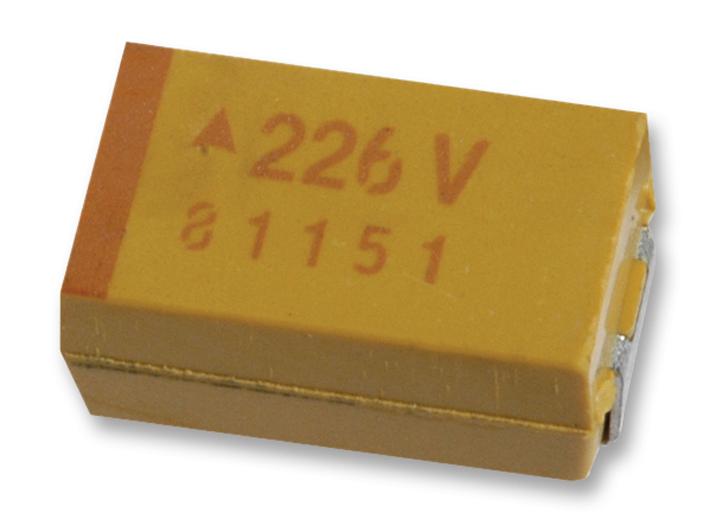

KYOCERA AVX TAJB226K020RNJ Tantalum Capacitor
The product is a high-reliability, low-profile tantalum capacitor with a capacitance of 22μF and rated voltage of 20V, suitable for low power DC/DC and LDO applications. It features RoHS compliance, with large case size options for enhanced durability, and standard tin or gold-plated terminations. Designed for environments requiring stability from -55°C to +125°C, its technical specifications include ESR, ripple current, and reliability data, ensuring optimal performance in demanding electronic circuitry. Ideal for engineers seeking dependable component solutions for compact electronic designs.
KYOCERA AVX TAJB226K020RNJ Tantalum Capacitor Specifications:
- Capacitance: 22μF
- Rated Voltage: 20V
- Temperature Range: -55°C to +125°C
- Case Size: 1210 (3.20mm x 6.00mm)
- Case Dimensions: 3.20mm x 6.00mm x 3.50mm
- Termination Finish: Sn Plating (standard), Gold and SnPb options available
- ESR: 166 mΩ at 100kHz RMS Current: 230mA at 85°C
- Reliability: 1% per 1000 hours at 85°C, V, with 0.10/V series impedance
- Qualification Standards: CECC 30801-005, EIA 5385BAAC
- Maximum ripple current: 230mA at 85°C
- Physical, technical, and electrical data measured at room temperature and specified conditions
Buy the Tantalum Series Capacitors: High Reliability 22μF 20V TAJB226K020RNJ
Order the AVX tantalum capacitor TAJB226K020RNJ online today and benefit from quick delivery, premium quality, and superior durability. Designed for low power applications like DC/DC converters and LDOs, this capacitor operates efficiently from -55°C to +125°C. It features RoHS compliance and a robust case size of 1210. Whether through-hole or surface-mount, this component ensures stability, low ESR, and high reliability. Enhance your electronic assembly with this trusted, high-performance tantalum capacitor—purchase now for excellent circuit performance.
Buy AVX tantalum capacitor TAJB226K020RNJ now and experience unmatched reliability and performance in your electronic circuits.
Frequently Asked Questions
Where can I buy KYOCERA AVX TAJB226K020RNJ?
You can click on the BUY or RFQ button to purchase TAJB226K020RNJ from an authorized KYOCERA AVX distributor.
How do I troubleshoot issues or seek technical support for part TAJB226K020RNJ?
You can download the TAJB226K020RNJ datasheet or visit the KYOCERA AVX website for support.
Who is the manufacturer of TAJB226K020RNJ?
KYOCERA AVX
