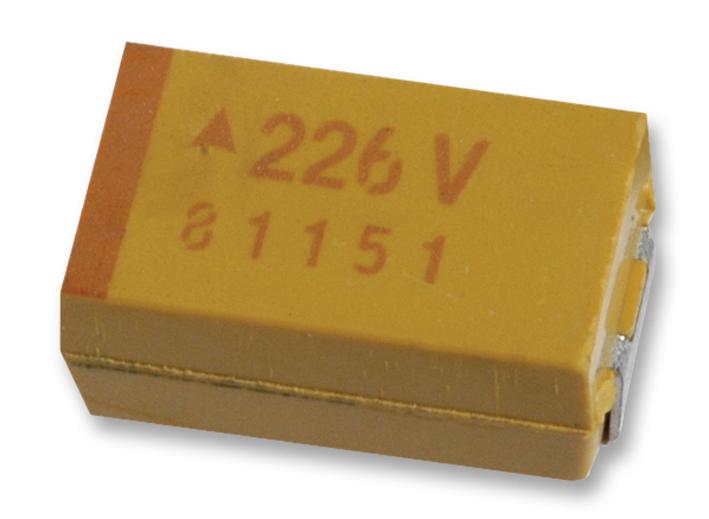

KYOCERA AVX TCJB106M016R0200 Conductive Polymer Capacitor
These high-quality Conductive Polymer Solid Electrolytic Chip Capacitors are designed for use in power supplies, smartphones, tablets, and LCD TVs. They feature a conductive polymer electrode for lower ESR, benign failure mode, lead-free construction, and compatibility with 8x reflow at 260°C. With Varying capacitance values from 0.47uF to 470uF and rated voltages between 2.5V and 125V, they ensure reliable performance under diverse operating conditions, meeting RoHS compliance and ensuring durability at temperatures from -55°C to +125°C.
KYOCERA AVX TCJB106M016R0200 Conductive Polymer Capacitor Specifications:
- Capacitance: 10uF, 16uF, 22uF, 33uF, 47uF, 68uF, 100uF, 150uF, 220uF, 330uF, 470uF
- Rated Voltage Range: 2.5V to 125V
- Temperature Range: -55°C to +125°C
- ESR: Max 700mΩ at 100kHz RMS current varies based on model
- Leakage Current: 0.1CV after 5 minutes at rated voltage
- Reliability: 1% failure per 1000 hours at 85°C
- Soldering Heat Resistance: 3x260°C reflow for max 10 seconds
- Case Sizes Available: 0805, 1206, 1210, 1212, 7343, 7361, 2017, 2917, 2924, 3306, 4706, 6806, 1006
- Compliance: RoHS, Beta Award 2010, UL 94V-0 flammability
- Materials: Conductive polymer electrode, encapsulated in a hermetic or conformal sealed case
- Dissipation Factor (DF): Typically 1.5x initial value
- Maximum RMS Ripple Current: ranges from 200mA to over 2000mA depending on model
- Tolerance: ±20% for capacitance, with specific codes for voltage and capacitance multipliers
Buy the Buy Conductive Polymer Solid Electrolytic Capacitor Part Number TCJB106M016R0200 Online
Order the Conductive Polymer Solid Electrolytic Capacitor TCJB106M016R0200 today for exceptional performance in power supplies, smartphones, and LCD TVs. Benefit from low ESR, lead-free design, RoHS compliance, and robust operation across a wide temperature range from -55°C to +125°C. With various capacitance values and rated voltages, these capacitors ensure long-lasting durability, high stability, and reliable operation under demanding conditions. Shop online now to secure fast delivery and superior quality for your electronic projects.
Get Conductive Polymer Solid Electrolytic Capacitor TCJB106M016R0200 today—designed for high reliability, low ESR, and excellent thermal stability in power applications.
Frequently Asked Questions
Where can I buy KYOCERA AVX TCJB106M016R0200?
You can click on the BUY or RFQ button to purchase TCJB106M016R0200 from an authorized KYOCERA AVX distributor.
How do I troubleshoot issues or seek technical support for part TCJB106M016R0200?
You can download the TCJB106M016R0200 datasheet or visit the KYOCERA AVX website for support.
Who is the manufacturer of TCJB106M016R0200?
KYOCERA AVX
