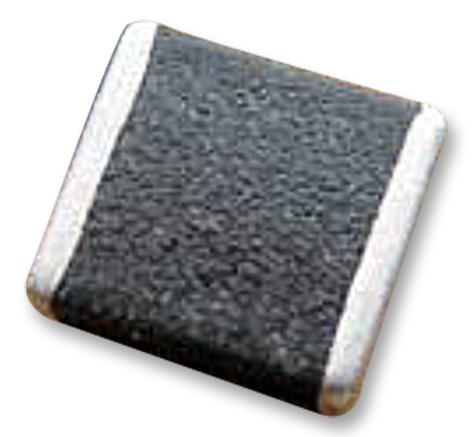

KYOCERA AVX VG120616N390DP Multilayer Varistor
The Glass Encapsulated TransGuard® multilayer varistors are zinc oxide-based ceramic semiconductor devices that offer bi-directional overvoltage protection and EMI/RFI attenuation in a single SMT package. Designed for high energy and harsh environments, these devices provide rapid response to ESD strikes, multi-strike capability, and enhanced resistance against corrosive conditions due to glass encapsulation. Suitable for industrial, commercial, and smart grid applications, they protect relays, sensors, ICs, and DC motors with voltage ratings from 16V to 85V DC and energy ratings up to 12J. Their robust size options cater to high energy demands, with features including high peak currents and bi-directional V-I characteristics.
KYOCERA AVX VG120616N390DP Multilayer Varistor Specifications:
- Case Size: 1206-2200
- Operating Temperature: -55°C to 125°C
- Working Voltage: 16-85Vdc
- Energy: 0.7-12J
- Peak Current: 200-2000A
- Size (EIA): 1206 - Length: 3.204mm, Width: 0.20mm, Max Thickness: 1.70mm
- Size (EIA): 1812 - Length: 4.50mm, Width: 3.20mm, Max Thickness: 2.00mm
- Size (EIA): 2220 - Length: 5.70mm, Width: 5.00mm, Max Thickness: 2.50mm
- Physical Dimensions: Various sizes with detailed length and width for each size category
- Max Clamping Voltage: 40V to 165V depending on model
- Peak Current Rating: Up to 2000A
- Capacitance: Ranges from 4 to 45 pF at specified frequencies
- Electrical Characteristics: Vw (DC) 16V to 85V, I leakage current as specified, Fast response to ESD
Buy the AVX VG120616N390 – Reliable TransGuard for Industrial Applications
Secure your equipment with the high-energy, glass-encapsulated multilayer varistor. Designed for harsh environments, it provides rapid, bi-directional protection against overvoltage and ESD. Perfect for industrial, commercial, and smart grid applications, this varistor offers robust resistance to corrosive conditions, with sizes accommodating high energy demands. Easy to integrate in various electronic devices, ensuring safety and durability, buy online now for dependable protection and improved system longevity.
Buy AVX VG120616N390 now and experience unmatched reliability and high-energy protection for industrial applications.
Frequently Asked Questions
Where can I buy KYOCERA AVX VG120616N390DP?
You can click on the BUY or RFQ button to purchase VG120616N390DP from an authorized KYOCERA AVX distributor.
How do I troubleshoot issues or seek technical support for part VG120616N390DP?
You can download the VG120616N390DP datasheet or visit the KYOCERA AVX website for support.
Who is the manufacturer of VG120616N390DP?
KYOCERA AVX
