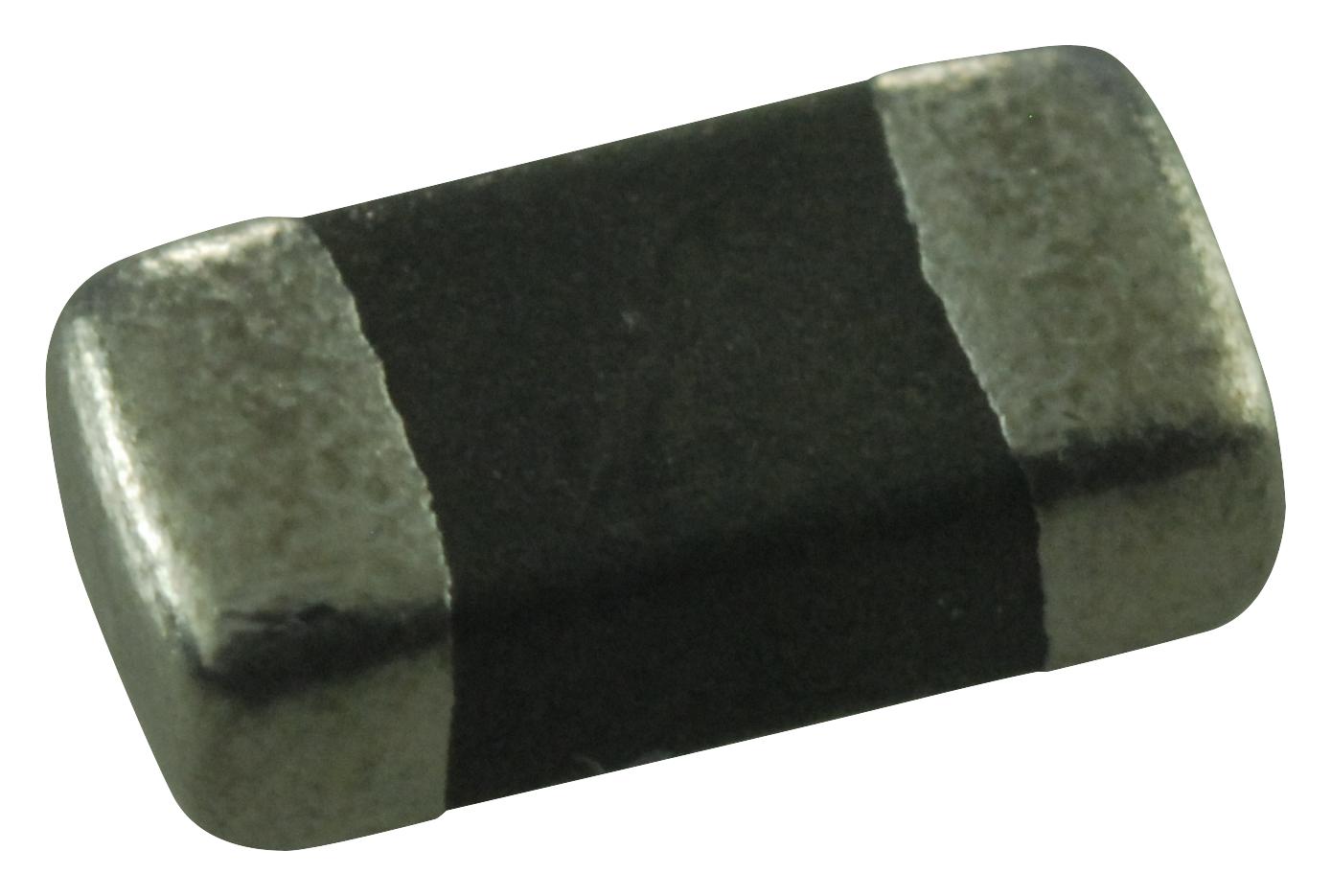

KYOCERA AVX VCAC040230X380NWP Multilayer Varistor
The Controlled Capacitance Multilayer Varistor is a high-performance, compact EMI/RFI filter designed for mixed signal environments and high-speed applications. Operating from -55°C to +125°C with a working voltage of 22 or 26Vdc, it reduces emissions, clamps transient voltages, and improves system EMC performance. Its 0603 case size makes it suitable for space-constrained designs, offering fast response to ESD events up to 25kV. Ideal for sensors, high-speed ASICs, and EMI TVS modules, it ensures reliable surge suppression and noise filtering in demanding electronic systems.
KYOCERA AVX VCAC040230X380NWP Multilayer Varistor Specifications:
- Operating temperature: -55°C to +125°C
- Working voltage: 22Vdc, 26Vdc
- Case size: 0603
- Transient energy rating: 25kV ESD immunity
- Capacitance: 380pF (VCAC040230X380N), 470pF (VCAC060322A470N), 820pF (VCAC060326C820M)
- Maximum leakage current: varies per part (e.g., 0.2μA for 9V, 0.1μA for 17V)
- Breakdown voltage: approximately 12.7V to 36V depending on model
- Peak current: up to 52A for 17V model
- Clamp voltage: around 12-50V depending on part
- Dimensions: Length 1.5 mm, Width 0.9 mm, Max thickness 0.6 mm
Buy the Innovative Multilayer Varistor – Reliable EMI/RFI Filtering for Industrial Applications
Order the Controlled Capacitance Multilayer Varistor today to safeguard your electronic systems from transient voltages and electromagnetic interference. With its compact 0603 case, fast response to ESD up to 25kV, and reliable surge suppression, it is ideal for high-speed ASICs, sensors, and EMI TVS modules. Improve your system EMC performance efficiently by choosing this high-quality varistor. Shop online now and benefit from fast delivery, competitive prices, and trusted reliability for your industrial and electronic needs.
Buy Controlled Capacitance Multilayer Varistor now and enhance your system's electromagnetic compatibility and surge protection with high-speed transient suppression.
Frequently Asked Questions
Where can I buy KYOCERA AVX VCAC040230X380NWP?
You can click on the BUY or RFQ button to purchase VCAC040230X380NWP from an authorized KYOCERA AVX distributor.
How do I troubleshoot issues or seek technical support for part VCAC040230X380NWP?
You can download the VCAC040230X380NWP datasheet or visit the KYOCERA AVX website for support.
Who is the manufacturer of VCAC040230X380NWP?
KYOCERA AVX
