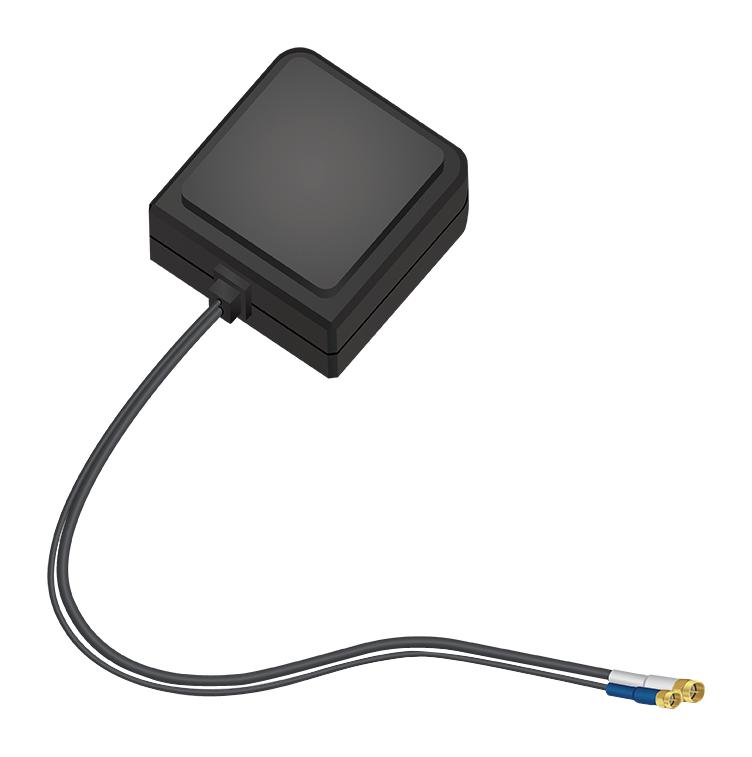

KYOCERA AVX X1005248GDA2SA10A2 GNSS and DSRC Antenna
The Ethertronics GNSS and DSRC 2-in-1 external antenna is designed for applications in smart home, automotive, healthcare, industrial, and digital signage industries. It features a compact foam adhesive mounting, a durable PC+ABS housing in black, and SMA connectors for GNSS and DSRC signals. Operating at frequencies of 1575 MHz, 1602 MHz, and 5850-5920 MHz, it offers high performance with a gain of 3.0 dBi at zenith, low VSWR of 2.0:1, power consumption of 9 mA, and robust compliance with RoHS & REACH standards. This antenna ensures reliable signal reception, cost-effective installation, and improved regulatory compliance for modern device designs.
KYOCERA AVX X1005248GDA2SA10A2 GNSS and DSRC Antenna Specifications:
- Operating Frequencies: 1575 MHz, 1602 MHz (GNSS), 5850-5920 MHz (DSRC)
- Gain at Zenith: 3.0 dBi (GNSS), Peak Gain 10 dB (DSRC)
- VSWR: 2.0:1 max (GNSS & DSRC)
- Power Supply: 3-5 V DC
- Power Consumption: 9 mA Typical
- Electrical Properties: Noise Figure 2.5 dB, Impedance 50 Ω
- Housing Material: PC+ABS (Black)
- Mounting: Foam adhesive
- Connectors: SMA(M) for GNSS and DSRC
- Dimensions: Top view approx. 24.1 mm length, side and bottom views show compact form factor
- Compliance: RoHS, REACH, tested for industrial, automotive, smart home, healthcare, and signage applications
Buy the Buy Ethertronics GNSS/DSRC Part Number X1005248GDA2SA10A2 Online
Purchase the Ethertronics GNSS and DSRC 2-in-1 external antenna online to enhance your device's connectivity in automotive, industrial, and smart home solutions. This compact antenna features SMA connectors for easy integration, operating across key frequencies with high gain, low VSWR, and excellent impedance matching. Its durable PC+ABS housing with foam adhesive mounting ensures reliable installation in various environments. Designed to meet global regulatory standards, it provides superior signal reception, cost-effective deployment, and long-lasting performance to support your innovative projects.
Get Ethertronics GNSS/DSRC external antenna today—optimized for automotive, smart home, and industrial device applications, ensuring reliable, high-performance signals.
Frequently Asked Questions
Where can I buy KYOCERA AVX X1005248GDA2SA10A2?
You can click on the BUY or RFQ button to purchase X1005248GDA2SA10A2 from an authorized KYOCERA AVX distributor.
How do I troubleshoot issues or seek technical support for part X1005248GDA2SA10A2?
You can download the X1005248GDA2SA10A2 datasheet or visit the KYOCERA AVX website for support.
Who is the manufacturer of X1005248GDA2SA10A2?
KYOCERA AVX
