L-COM AOCQP40007JN Optical Cable
The active optical cable designed for high-speed 40Gbps data transmission supports four lanes with a maximum aggregate data rate of 42 Gb/s. It is compatible with QSFP+ and MSA standards, featuring multimode ribbon fiber and riser-rated construction. Suitable for data center intra- and inter-rack links, it operates reliably within 0°C to 70°C temperature range and up to 100 meters length with minimal power dissipation of less than 1.5W per end. Its electrical interface conforms to SFF-8431, supporting protocols like InfiniBand and Fibre Channel.
L-COM AOCQP40007JN Optical Cable Specifications:
- Module Form Factor: QSFP+
- Number of Lanes: 4Tx/Rx
- Maximum Aggregate Data Rate: 42.0 Gb/s
- Maximum Data Rate per Lane: 10.5 Gb/s
- Cable Lengths Supported: 3, 5, 7, 10, 50, 100 meters (other lengths available on request)
- Connector Type: 38-pin edge connectors
- Optical Cable Type: Multimode ribbon fiber, riser-rated
- Maximum Power Consumption: 15 W
- Operating Temperature: 0°C to 70°C
- Storage Temperature: -40°C to 85°C
- Operational Humidity: 5% to 95%
- Power Supply Voltage: 3.14V to 3.46V
- Supply Current: 450 mA per end
- Electrical Interface: SFF-8431 compliant
- Management Interface: Serial, I2C, 400 kHz
- RoHS Compliant

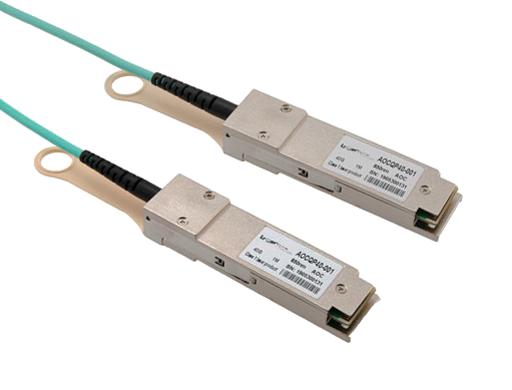

Buy the INFINITG Series QSFP+ 40Gbps Optical Cable: AOCQP40-001
Experience high-speed data connectivity with the INFINITG QSFP+ active optical cable. Designed for data centers, it supports 40Gbps links over distances up to 100 meters. Built with multimode ribbon fiber and riser-rated safety, it offers low power consumption of less than 1.5W per end. The cable features a QSFP+ form factor with 4 lanes, supporting protocols like Ethernet, Fibre Channel, and InfiniBand. Easy to install, reliable under wide temperature ranges, and compliant with industry standards, making it ideal for demanding networking environments.
Get INFINITG QSFP+ 40Gbps Optical Cable today—built for high-speed data transfer and reliable performance up to 100 meters.
Frequently Asked Questions
Where can I buy L-COM AOCQP40007JN?
You can click on the BUY or RFQ button to purchase AOCQP40007JN from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part AOCQP40007JN?
You can download the AOCQP40007JN datasheet or visit the L-COM website for support.
Who is the manufacturer of AOCQP40007JN?
L-COM
