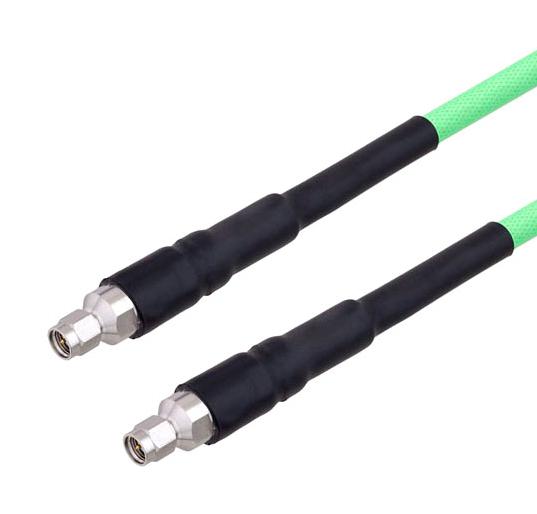

L-COM LCCA30033FT2 SMA Cable Assembly
L-com’s LCCA30033-FT2 is a flexible, low loss SMA male to SMA male cable assembly with a durable heavy-duty heat shrink boot. Using LL335i coaxial cable with tape wrapped PTFE dielectric, it operates efficiently up to 18 GHz. The triple shielding with silver-plated copper layers provides superior shielding effectiveness over 95dB, making it ideal for automated test systems, laboratory applications, antenna ranges, and long cable runs requiring flexibility. Stainless-steel connectors ensure durability, and the 2-foot length offers easy installation in various RF systems.
L-COM LCCA30033FT2 SMA Cable Assembly Specifications:
- Frequency Range: DC to 18 GHz
- Insertion Loss: Max. 0.31 dB at 18 GHz
- Impedance: 50 Ohms
- Velocity of Propagation: 83%
- Shielding Effectiveness: > 95dB
- Capacitance: 25 pF/ft
- Cable Type: LL335i coaxial cable
- Connector Type: SMA Male to SMA Male
- Connector Material: Beryllium Copper, Gold plated
- Dielectric: Tape wrapped PTFE with 83% VoP
- Outer Shield: Silver plated copper braid over silver plated copper tape
- Jacket Material: FEP (Green)
- Cable Diameter: 0.3 inches
- Length: 2 feet
- Weight: 0.139 lbs
- Operating Temperature Range: -55°C to +200°C
- Maximum Repeated Bend Radius: 1.5 inches
Buy the INFINITG Series SMA Cable: LCCA30033-FT2
Purchase the INFINITG LCCA30033-FT2 SMA cable assembly online today for reliable high-frequency connections. Designed with durable stainless-steel connectors, a heavy-duty heat shrink boot, and flexible LL335i coaxial cable, this 2-foot assembly provides excellent shielding effectiveness over 95dB and operates efficiently up to 18 GHz. Perfect for test systems, laboratory setups, and long cable runs, ensuring optimal signal integrity, durability, and easy installation in demanding RF environments.
Get INFINITG LCCA30033-FT2 today—built for precision, durability, and high-frequency performance up to 18 GHz.
Frequently Asked Questions
Where can I buy L-COM LCCA30033FT2?
You can click on the BUY or RFQ button to purchase LCCA30033FT2 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCCA30033FT2?
You can download the LCCA30033FT2 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCCA30033FT2?
L-COM
