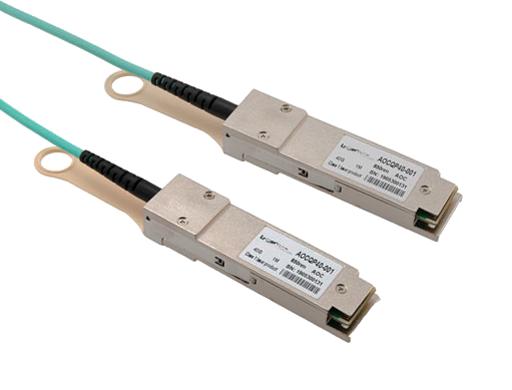

L-COM AOCQP40010 Optical Cable
The Active Optical Cable QSFP+ 40Gbps is a high-speed, 1-meter multimode ribbon fiber cable designed for data center applications, supporting 42 Gb/s aggregate data transfer. Fully compliant with QSFP+ MSA standards, it features four lanes with up to 10.5 Gb/s per channel, enabling reliable 40G Ethernet, Infiniband, and Fibre Channel links within and across racks. Powered by 850nm VCSEL technology, it operates at 0°C to 70°C, consumes less than 1.5W per end, and offers maximum link lengths up to 100 meters, making it ideal for HPC interconnects and data center infrastructure.
L-COM AOCQP40010 Optical Cable Specifications:
- Module Form Factor: QSFP+
- Number of Lanes: 4Tx/Rx
- Maximum Aggregate Data Rate: 42.0 Gb/s
- Maximum Data Rate per Lane: 10.5 Gb/s
- Cable Lengths: 1m (39.37 inches), available in 3, 5, 7, 10, 50, 100 meters
- Connector Type: Multimode ribbon fiber, riser-rated
- Operating Temperature: 0°C to 70°C
- Storage Temperature: -40°C to 85°C
- Maximum Power Dissipation: 15 W
- Power Supply Voltage: 3.14V to 3.46V
- Supply Current: 450 mA per end
- Compliance: RoHS, MSA standards
- Signal Compatibility: SFF-8431 electrical interface
- Supported Protocols: 40G Ethernet, Infiniband QDR, Fibre Channel
- Fiber Type: Multimode ribbon fiber
- Environmental Conditions: Humidity 5%-95%, RoHS compliant
Buy the INFINITG Series Optical Cable: 40Gbps QSFP+ 1m - AOCQP40-001
Enhance your data center connectivity with this high-performance 40Gbps active optical cable. Designed for intra-rack and inter-rack links, it supports 42 Gb/s aggregate transfer with four lanes up to 10.5 Gb/s each. This 1-meter multimode ribbon fiber cable is compliant with QSFP+ MSA standards, ensuring compatibility and reliability for demanding applications like 40G Ethernet, Infiniband, and Fibre Channel. Operating efficiently between 0°C and 70°C, it offers a low power dissipation of under 1.5W per end, making it the ideal choice for HPC interconnects and data center infrastructure. Purchase online now for secure and fast delivery.
Buy INFINITG Series Optical Cable AOCQP40-001 now and experience unmatched reliability and high-speed performance for data center links.
Frequently Asked Questions
Where can I buy L-COM AOCQP40010?
You can click on the BUY or RFQ button to purchase AOCQP40010 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part AOCQP40010?
You can download the AOCQP40010 datasheet or visit the L-COM website for support.
Who is the manufacturer of AOCQP40010?
L-COM
