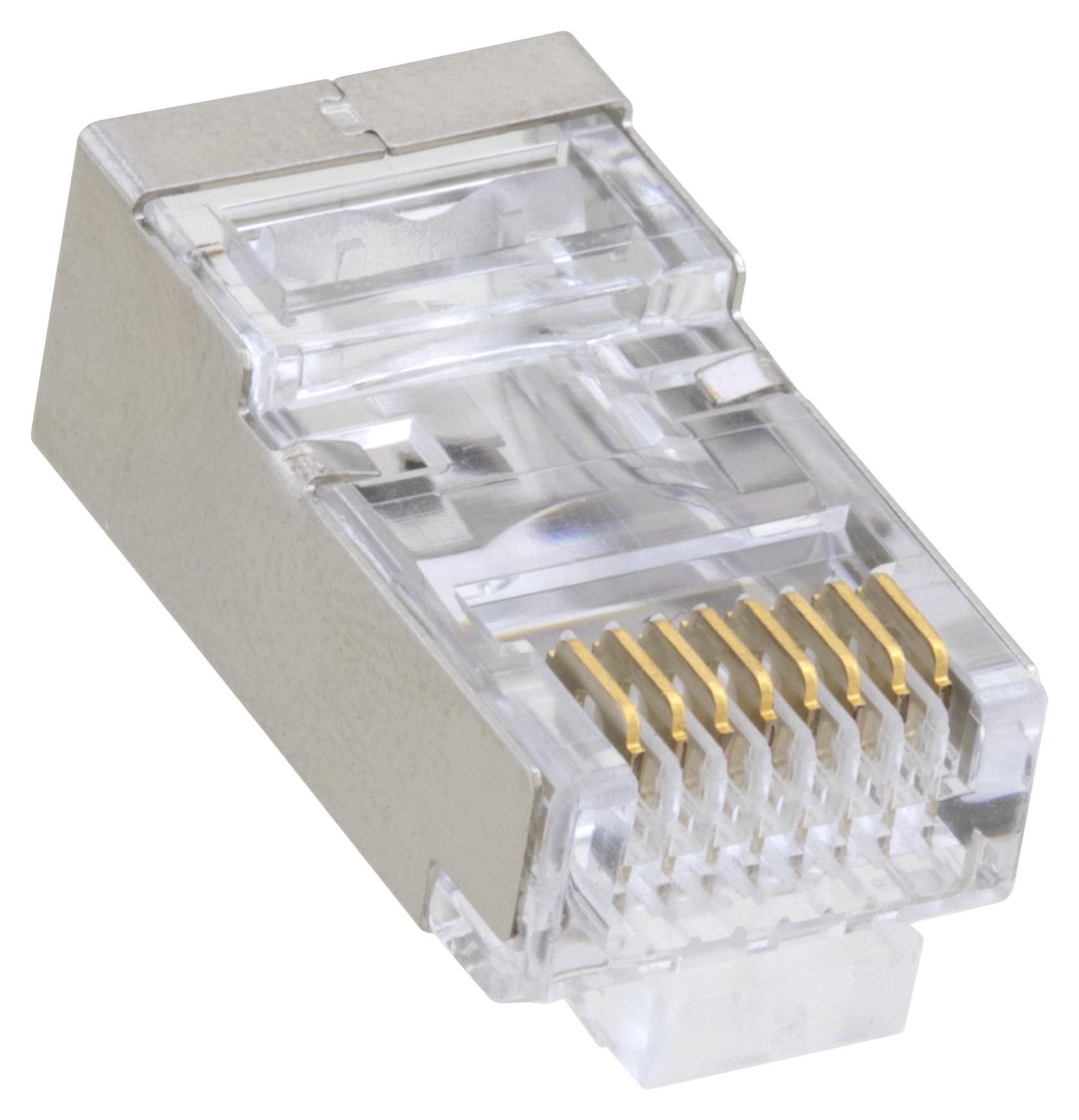

L-COM TDPTC5ES Shielded RJ45 Network Plug
The Plug Through RJ45 Shielded Cat5e offers reliable Ethernet connectivity with shielded design for enhanced interference protection. Comprising a durable polycarbonate housing and gold-plated copper contacts, it ensures optimal signal transmission and longevity. Suitable for UL applications up to 250 volts AC and 2 amps, it withstands dielectric voltages up to 1000 volts AC for 60 seconds. Its copper alloy shield and contact blades promote durability, while the strain relief and compatibility with stranded or solid 24-26 AWG wires make it ideal for secure, high-performance network installations.
L-COM TDPTC5ES Shielded RJ45 Network Plug Specifications:
- UL Application Voltage: 250V AC at 2A
- Dielectric Withstanding Voltage: 1000V AC for 60 seconds
- Insulation Resistance: 100 MΩ
- Termination Resistance: 20 MΩ max after environmental testing
- Tensile Strength (Cable to Plug): 20 pounds minimum
- Durability: 200 mating cycles
- Housing Material: Polycarbonate, UL94V-0 or UL94V-2, color transparent
- Contact Material: Copper alloy with 501" gold plating
- Shielding Shell: Copper alloy
- Wire Compatibility: Stranded or solid wire, 24 AWG, 26 AWG (OD: 0.037" to 0.040")
- Overall Dimensions: 8.60" length, 5.24" width, 4.02" height
- Packaging: 100 pieces per bulk bag as per L-COM specifications
Buy the L-Com Series Shielded RJ45 Ethernet Connector: TDPTC5ES
Enhance your network setup with this Shielded RJ45 Ethernet Plug designed for high-speed, reliable data transfer. Made with durable polycarbonate housing, gold-plated copper contacts, and copper alloy shielding, it provides excellent interference protection and long-lasting performance. Suitable for UL applications up to 250 volts AC and 2 amps, it withstands dielectric voltages up to 1000 volts for 60 seconds. Compatible with stranded or solid wire (24-26 AWG), it is ideal for professional networking, telecommunications, and data center installations. Secure your connectivity today.
Order your L-Com Series Shielded RJ45 Ethernet Connector today and ensure high-quality, interference-free network connections for your projects.
Frequently Asked Questions
Where can I buy L-COM TDPTC5ES?
You can click on the BUY or RFQ button to purchase TDPTC5ES from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part TDPTC5ES?
You can download the TDPTC5ES datasheet or visit the L-COM website for support.
Who is the manufacturer of TDPTC5ES?
L-COM
