L-COM AOCQSP40005 Active Optical Cable
The AOCQSP40-001 is a 1-meter active optical breakout cable designed for high-speed 40Gbps Ethernet and Infiniband data center applications. Compatible with QSFP+ and SFP+ interfaces, it features multimode ribbon fiber cables, supporting data rates up to 42 Gb/s and 10.5 Gb/s per lane. Its reliable VCSEL 850nm technology ensures stable full-duplex signals over distances up to 30 meters. Ideal for intra-rack and inter-rack connectivity, the cable is hot-pluggable, with temperature range from 0°C to 70°C and power dissipation below 1.5W per QSFP+ end.
L-COM AOCQSP40005 Active Optical Cable Specifications:
- Module Form Factor: QSFP+ and SFP+
- Maximum Data Rate: 42.0 Gb/s total, 10.5 Gb/s per lane
- Cable Length: 1 meter (custom lengths available up to 300 meters)
- Fiber Type: Multimode ribbon fiber, riser-rated
- Operating Temperature: 0°C to 70°C
- Storage Temperature: -40°C to 85°C
- Power Dissipation: < 1.5W per QSFP+ end
- Supported Protocols: 40G Ethernet, Infiniband QDR, Fibre Channel 10G
- Electrical Interface: Compliant with SFF-8436 (QSFP+), SFF-8431 (SFP+) and SFF-8432 (mechanical)
- Data Rate per Lane: 10.5 Gb/s
- Connector Specifications: 38-pin edge connector for QSFP+ and SFP+
- Fiber Type: Multimode ribbon fiber, riser-rated
- Relative Humidity: 5% to 95%
- RoHS Compliant: Yes

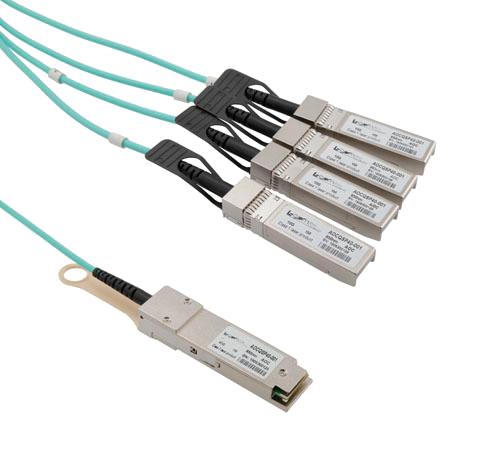

Buy the Buy INFINITG Active Optical Cable Breakout QSFP+ Part Number AOCQSP40-001 Online
Purchase the INFINITG Active Optical Cable QSFP+ 40Gbps to 4x10G SFP+ breakout cable online now. This 1-meter multimode fiber assembly offers high data rates up to 42 Gb/s, supporting critical intra-rack and inter-rack links. Compatible with industry standards, it features VCSEL 850nm laser technology for stable, full-duplex signals over distances up to 30 meters. Perfect for data centers, high-performance computing, and storage networks, it ensures quick, reliable, and efficient optical connections for demanding environments.
Order your INFINITG SeriesAOCQSP40-001 40Gbps optical breakout cable today and enhance your data center’s high-speed interconnects with reliable optical precision.
Frequently Asked Questions
Where can I buy L-COM AOCQSP40005?
You can click on the BUY or RFQ button to purchase AOCQSP40005 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part AOCQSP40005?
You can download the AOCQSP40005 datasheet or visit the L-COM website for support.
Who is the manufacturer of AOCQSP40005?
L-COM
