L-COM LCCA30003FT15 RF Cable Assembly
L-com's cable assembly features a 1.5 ft length with SMA male to SMA male right angle connectors, utilizing 402SS Series coax. Designed for high-frequency applications up to 18 GHz, it provides excellent shielding greater than 110dB with double shielding layers, including silver-plated copper braid and tape. The cable has a flexible PTFE dielectric, FEP jacket, and a heavy-duty heat shrink boot for durability. Ideal for RF interconnects, laboratory use, and automated test systems requiring tight bends and reliable performance.
L-COM LCCA30003FT15 RF Cable Assembly Specifications:
- Frequency Range: 18 GHz
- VSWR: 1.41
- Velocity of Propagation: 70%
- RF Shielding: Greater than 110dB
- Capacitance: 29.4 pF
- Input Power (Peak): 550 Watts
- Length: 1.5 ft (457.2 mm)
- Diameter: 0.315 in (8 mm)
- Impedance: 50 Ohms
- Inner Conductor: Stranded, Copper, Silver Plated
- Dielectric: PTFE
- Number of Shields: 2 (Silver Plated Copper Tape & Braid)
- Jacket Material: FEP, Tan
- Jacket Diameter: 0.163 in (4.14 mm)
- Repeated Minimum Bend Radius: 1 in (25.4 mm)
- Connector Type: SMA Male to SMA Male Right Angle
- Connector Material: Brass, Gold Plated
- Body Material: Brass, Nickel Plated
- Torque: 12 in-lbs (1.36 Nm)
- Temperature Range: -55°C to +165°C
- Heavy Duty Heat Shrink Boot: Yes
- Cable Type: 402SS Series
- Weight: 0.12 lbs (54.43 g)

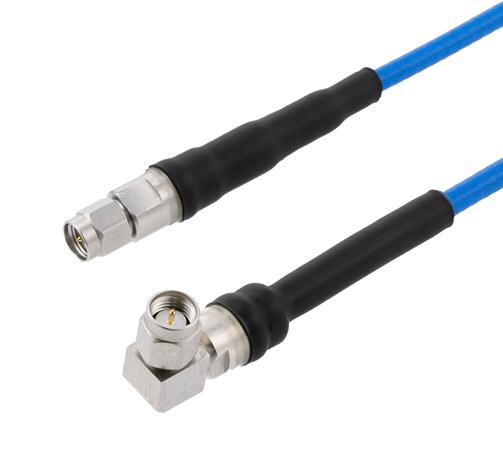

Buy the Buy Infinite Electronics SMA Male to SMA Male Right Angle Cable Part Number LCCA30003 Online
Purchase the high-performance RF cable assembly with SMA male to SMA male right angle connectors from Infinite Electronics. With a length of 1.5 ft and operating up to 18 GHz, this cable offers excellent shielding over 110dB, double shielding layers, and a durable FEP jacket with heavy-duty boot for enhanced durability. Ideal for laboratory, automated test systems, and tight-space RF interconnects, it ensures reliable signal integrity in demanding high-frequency environments. Same-day shipping available for immediate deployment.
Buy Infinite Electronics SMA Male to SMA Male Right Angle Cable now and experience unmatched reliability and performance for high-frequency RF applications.
