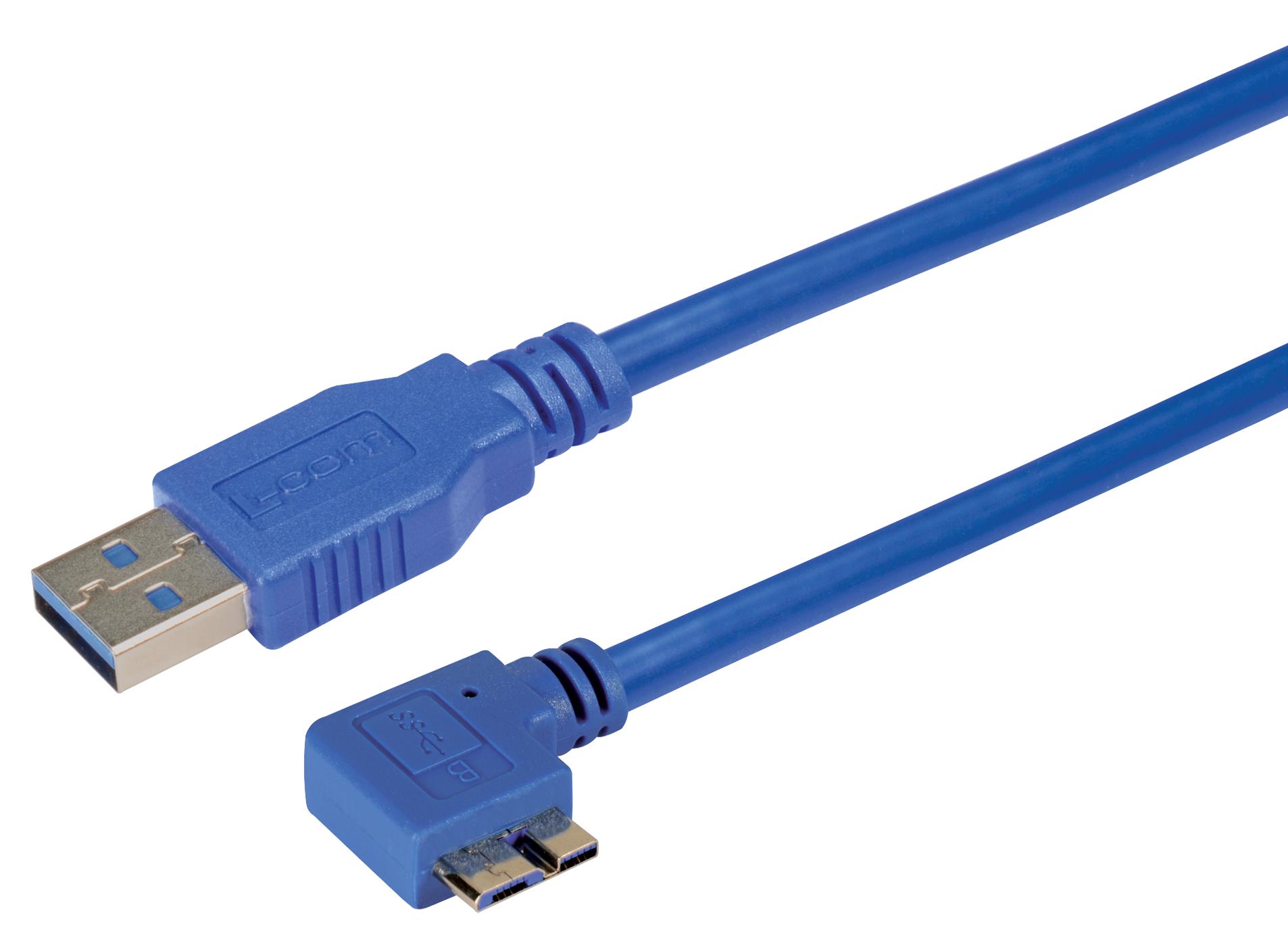

L-COM CA3A90RMICB05M USB Data Cable
The USB 3.0 Series A to Micro B cable assembly features a molded hood and strain relief made of durable PVC in blue (Pantone 300C). It supports USB 3.0 requirements with 360° shield termination, ensuring high-speed data transfer and robust connectivity. The cable includes gold-plated contacts for optimal electrical performance and is tested for continuity. Available in multiple lengths from 0.3 meters to 5 meters, it is suitable for high-performance data applications, with UL style 20276 compliance and RoHS conformity for environmentally responsible use.
L-COM CA3A90RMICB05M USB Data Cable Specifications:
- Connector Type: USB 3.0 Series A Plug and Micro B Right Angle Plug
- Contacts: 30 gold-plated contacts
- Shielding: Alum/poly foil shield and drain, 360° shield termination
- Wire Type: Twisted pair, 30AWG with shield, 24AWG unshielded pair
- Jacket Material: PVC, blue Pantone 300C
- Cable Lengths: 0.3m, 0.5m, 1.0m, 2.0m, 3.0m, 5.0m
- Outer Diameter: 0.217 inches (5.5 mm)
- Minimum Bend Radius: 2.17 inches (55 mm)
- UL Style: 20276
- RoHS Compliant: Yes
- Rated for high-speed data transfer, durability, and shielded integrity
- Tested for continuity, meets USB 3.0 specifications
- Includes strain relief and molded hood for robust connection
- Package: Individually packaged, compliant with L-COM specifications
Buy the Buy L-COM USB 3.0 Series A Micro B Part Number CA3A90RMICB05M Online
Purchase the L-COM USB 3.0 Series A to Micro B cable with blue PVC jacket, gold contacts, and shielded design. Available in multiple lengths for high-speed data transfer and durable connectivity. Perfect for professional and industrial applications, this cable features molded strain reliefs, shield termination, and compliance with USB 3.0 standards. Order online today to ensure exceptional performance and reliable connections, backed by high-quality testing and RoHS compliance. Get your project connected with ease and confidence.
Order your L-COM USB 3.0 Series A Micro B Part Number CA3A90RMICB05M today and ensure reliable, high-speed data transfer for your projects.
Frequently Asked Questions
Where can I buy L-COM CA3A90RMICB05M?
You can click on the BUY or RFQ button to purchase CA3A90RMICB05M from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part CA3A90RMICB05M?
You can download the CA3A90RMICB05M datasheet or visit the L-COM website for support.
Who is the manufacturer of CA3A90RMICB05M?
L-COM
