L-COM LCCA30040FT2 RF Coaxial Cable Assembly

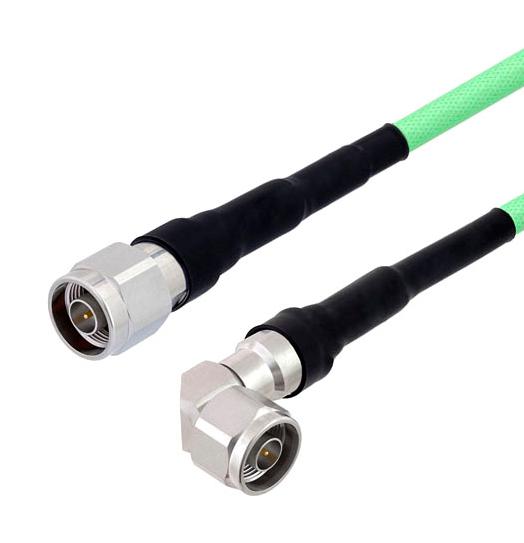

L-com’s LCCA30040-FT2 is a 2-foot low loss N male to N male right angle coaxial cable assembly featuring a heavy-duty heat shrink boot and LL335i coax. Engineered for high-frequency applications up to 18 GHz, it includes a tape-wrapped PTFE dielectric with 83% VoP, offering minimal insertion loss and excellent flexibility for automated test systems, laboratory setups, antenna ranges, and long cable runs. The triple shielding—silver-plated copper tape, aluminum polyester, and copper braid—ensures over 95 dB RF shielding. Durable stainless steel connectors and the heavy-duty boot extend its operational lifespan, providing reliable performance in tight or demanding environments.
L-COM LCCA30040FT2 RF Coaxial Cable Assembly Specifications:
- Frequency Range: Dc to 18 GHz
- Impedance: 50 Ohms
- Insertion Loss (Max.): 0.36 dB at 1 GHz, up to 0.87 dB at 18 GHz
- VSWR: 1.35:1
- Velocity of Propagation: 83%
- RF Shielding: > 95 dB
- Capacitance: 25 pF/ft
- Cable Type: LL335i
- Inner Conductor: Solid Copper, Silver plated
- Dielectric: Tape wrapped PTFE
- Shield Layers: Silver plated copper tape, aluminum polyester, copper braid
- Jacket Material: FEP, green
- Jacket Diameter: 0.3 inches
- Cable Length: 24 inches
- Outer Diameter: 0.3 inches
- Weight: 0.139 lbs
- Maximum bend radius: 1.5 inches
- Connectors: N Male, right angle, passivated stainless steel with gold over nickel plating
- Operating Temperature Range: -55°C to +200°C
- Certifications: SAE-AMS-2700, UL Listed
Buy the Infinity Electronics LCCA30040-FT2 – Reliable RF Coaxial Cable Assembly for Industrial Applications
Purchase the Infinity Electronics LCCA30040-FT2 low loss N male to N male right angle coax cable assembly online today. Its flexible design, durable heavy-duty boot, and excellent shielding effectiveness make it ideal for demanding RF applications operating up to 18 GHz. Whether for laboratory, automated test systems, or long-distance antenna connections, this 2-foot cable offers minimal insertion loss, high reliability, and extended lifespan. Fast same-day shipping ensures your projects stay on schedule with dependable, top-quality components.
Order your Infinity Electronics LCCA30040-FT2 RF cable assembly today and ensure robust, high-frequency connections for your automated test systems or antenna setups.
Frequently Asked Questions
Where can I buy L-COM LCCA30040FT2?
You can click on the BUY or RFQ button to purchase LCCA30040FT2 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCCA30040FT2?
You can download the LCCA30040FT2 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCCA30040FT2?
L-COM
