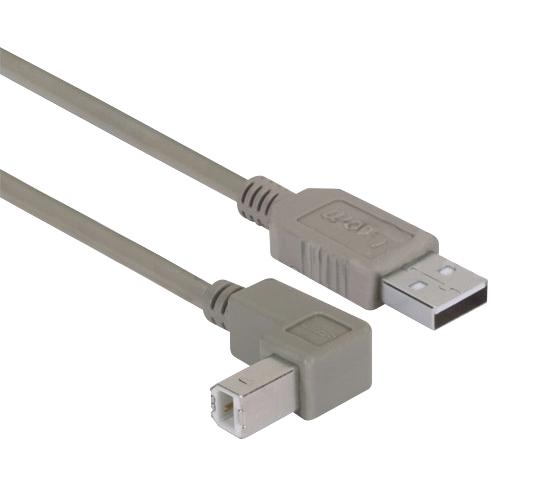

L-COM CAA90DB05M USB A to USB B Cable
The L-COM CAA-90DB-05M is a high-quality USB A to USB B cable designed for reliable data transfer and power delivery. This 0.5-meter cable features a right-angle connector, minimizing stress on the connection and providing flexibility in tight spaces. Constructed with a PVC jacket, tinned copper conductors, and an aluminum polyester shield with a drain wire, this cable ensures excellent signal integrity and protection against electromagnetic interference. It is USB 2.0 compliant and suitable for a wide range of applications, including connecting peripherals to computers, printers, and other USB-enabled devices. The cable is individually packaged according to L-COM specification PS-0031.
L-COM CAA90DB05M USB A to USB B Cable Specifications:
- overall_cable_length: 0.5 meters [1.64 feet]
- connector_type_a: USB Series A Plug
- connector_type_b: USB Series B Plug
- angle: Right Angle
- contact_plating: 30 µinches Gold Plating
- jacket_material: PVC, Gray (Pantone 424C)
- shielding: Aluminum Polyester Shield with Drain Wire and Tinned Copper Braided Shield
- conductor_a: One 28AWG Stranded Tinned Copper Twisted Pair
- conductor_b: Two 26AWG Stranded Tinned Copper Conductors
- cable_construction: PVC outer jacket, Gray (Pantone 424C)
- cable_length_tolerance: >12 [305] ≤60 [1524] = +2 [51] / -0; ≤12 [305] = +1 [25] / -0; >120 [3048] ≤300 [7620] = +6 [152] / -0; >60 [1524] ≤120 [3048] = +4 [102] / -0; >300 [7620] = +5% / -0%
- dimensional_tolerance_x: ± .2
- dimensional_tolerance_xx: ± .02
- dimensional_tolerance_xxx: ±.005
- rohs: Compliant
- usb_standard: USB 2.0
Buy the CAA-90DB-05M L-COM USB A to USB B Cable | myMectronic
Purchase the L-COM CAA-90DB-05M USB A to USB B cable securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy L-COM CAA90DB05M?
You can click on the BUY or RFQ button to purchase CAA90DB05M from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part CAA90DB05M?
You can download the CAA90DB05M datasheet or visit the L-COM website for support.
Who is the manufacturer of CAA90DB05M?
L-COM
