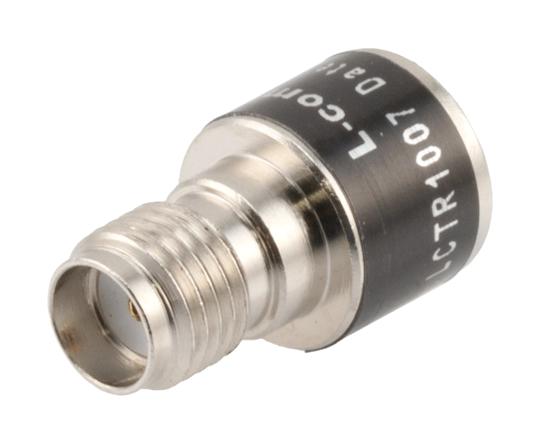

L-COM LCTR1007 RF Load
L-com’s LCTR1007 is a high-quality RF termination operating from DC to 18 GHz, capable of handling 1 Watt CW power. Featuring a female SMA connector, it provides a maximum VSWR of 1.40:1 and is essential for RF, microwave, and millimeter wave systems. It absorbs incident energy on unused ports, preventing reflections that could damage equipment or degrade signal integrity. Ideal for terminating devices like couplers, circulators, and switches, the LCTR1007 ensures accurate measurements and reliable performance in demanding conditions.
L-COM LCTR1007 RF Load Specifications:
- Frequency Range: DC to 18 GHz
- Impedance: 50 Ohms
- VSWR: 1.40:1
- Input Power (CW): 1 Watt, derated to 0.1W @ +125°C
- Input Power (Peak): 250 Watts with 5μs pulse and 0.4% duty cycle
- Connector: SMA Female
- Size: Length 0.63 in [16 mm], Width 0.36 in [9.14 mm]
- Material: Contact - Beryllium Copper Gold; Outer Conductor - Brass Nickel; Body - Brass Nickel
- Operating Temperature Range: -55 to +125°C
- Weight: 0.011 lbs [4.99 g]
Buy the L-com LCTR1007 – Reliable RF Load for Industrial Applications
Purchase the LCTR1007 RF load online today and experience reliable performance in high-frequency applications up to 18 GHz. This 1 Watt dummy load features a female SMA connector, designed for RF and microwave systems requiring precise signal termination. Its robust construction and wide temperature range guarantee durability and consistent operation in demanding environments. Whether for testing, measurement, or system protection, ordering this high-quality RF termination ensures your equipment's safety and signal integrity. Get yours now for fast, secure delivery and continuous, dependable operation.
Order your L-com Series LCTR1007 RF load today and ensure your microwave systems perform with dependable accuracy and minimal reflection.
Frequently Asked Questions
Where can I buy L-COM LCTR1007?
You can click on the BUY or RFQ button to purchase LCTR1007 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCTR1007?
You can download the LCTR1007 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCTR1007?
L-COM
