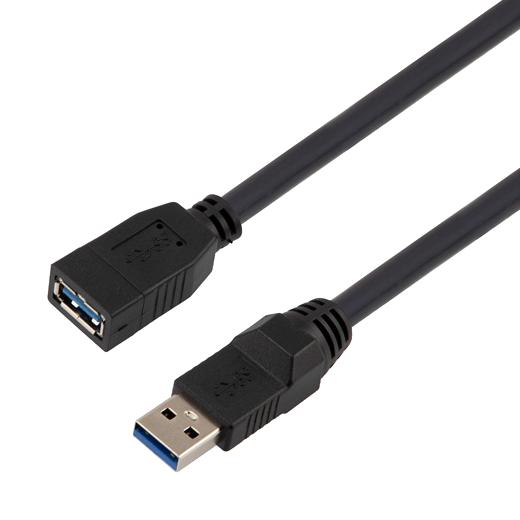

L-COM CAU3HFAXBLK105M USB High Flex Cable
The CAU3HFAX family of high-flex USB extension cables are designed for continuous motion, high flexibility, and drag chain use, making them ideal for factory automation and camera applications. These rugged USB 3.0 cables are tested for over 5 million flex cycles in U-style drag chain environments. The specific model features a USB Type A male connector on one end and a USB Type A female connector on the other, allowing extension of existing USB setups while adding durability for high-flex and drag chain conditions. Constructed with a high-flex, drag chain-rated PVC jacket in black that complies with VW-1 flame resistance standards, the cable also includes 22 AWG power conductors for maximum current transfer. Moulded connectors ensure enhanced durability, and the cable supports data transfer speeds up to 4.8 Gbps. This assembly is rated to sustain at least 5 million flex cycles at 8 times the cable outer diameter, ensuring long-lasting performance in demanding industrial environments.
L-COM CAU3HFAXBLK105M USB High Flex Cable Specifications:
- UL Style 20276 compliant
- Cable Type: USB 3.0 high flex drag chain rated
- Connectors: USB Type A male and female
- Shielding: Overall alum/poly, drain wire, spiral shield
- Conductors: 22 AWG power conductors, 26 AWG twisted pair
- Cable Length: 0.5 meters (1.64 feet) to 2.5 meters (8.20 feet), various options
- Bend Radius: Fixed minimum 5x O.D., moving minimum 10x O.D.
- Flame Rating: UL VW-1
- Outer Diameter: approx. 0.276 inches
- Temperature Rating: suitable for industrial environments
- Construction: PVC jacket, moulded connectors, high flexibility for drag chain use
- Current Capacity: supports high current transfer at 22 AWG conductors
- Testing: Endurance over 5 million flex cycles
Buy the Buy Industry Supply USB 3.0 High Flex Drag Chain Cable Part Number CAU3HFAXBLK105M Online
Enhance your industrial automation setup with this durable USB 3.0 high flex drag chain cable. Designed for continuous motion and high flexibility, it withstands over 5 million flex cycles, making it perfect for factory automation and camera applications. Features moulded connectors for extra durability and a PVC jacket with VW-1 flame resistance. Supports data speeds up to 4.8 Gbps and includes 22 AWG power conductors for high current transfer. Available in various lengths, this cable ensures long-lasting performance in demanding industrial environments.
Get Industry Supply USB 3.0 High Flex Drag Chain Cable today—built for durability, high flexibility, and continuous industrial motion.
Frequently Asked Questions
Where can I buy L-COM CAU3HFAXBLK105M?
You can click on the BUY or RFQ button to purchase CAU3HFAXBLK105M from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part CAU3HFAXBLK105M?
You can download the CAU3HFAXBLK105M datasheet or visit the L-COM website for support.
Who is the manufacturer of CAU3HFAXBLK105M?
L-COM
