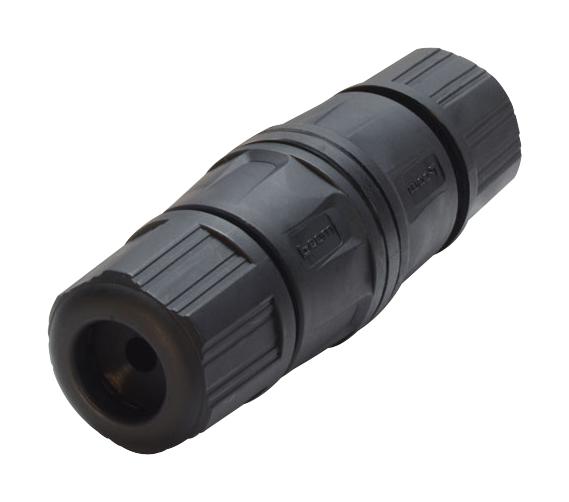

L-COM CGC6FF Shielded RJ45 Connector
The CGC6FF is an IP68-rated shielded RJ45 connector designed for outdoor telecommunications and industrial networking applications. Made from high-quality materials including brass shield and silicone grommets, it ensures durability and reliable data transmission in harsh environments. The connector features a sturdy PA66 housing with UL94V-0 flame rating and a brass shield with nickel plating for enhanced corrosion resistance. Its compact design supports panel thickness up to 0.175 inches, making it ideal for secure, waterproof, and dustproof connections in demanding setups.
L-COM CGC6FF Shielded RJ45 Connector Specifications:
- Material: Brass shield, PA66 (FR370), UL94V-0 housing
- Color/Finish: Black, Nickel plated shield
- Ingress Protection: IP68 when fully assembled
- Panel Thickness: Max 0.175 inches (4.5 mm)
- Operating Temperature: -40°C to +80°C
- Tested per L-COM specifications for immersion and durability
- Connector Type: RJ45 8P8C shielded coupling
- Gasket Material: Silicone, Black
- Overall Dimensions: 1.209 inches (30.70 mm) length, 0.236 inches (6.00 mm) diameter
- Cable Gland: PA66 (FR370), UL94V-0, Black
- Grommets: Small and Large silicone types included
- Certifications: UL Listed, compliant with RoHS directives
Buy the Buy L-COM IP68 Shielded RJ45 Connector Part Number CGC6FF Online
Enhance your outdoor networking projects with the L-COM CGC6FF shielded RJ45 connector, featuring IP68 ingress protection, corrosion-resistant materials, and a robust design. Its compact, waterproof construction ensures reliable data transmission in harsh environments, making it ideal for industrial, telecommunications, and outdoor applications. With silicone grommets and UL94V-0-rated housing, this connector provides durability and safety. Easily installable, it guarantees long-lasting performance, helping you maintain secure, dustproof, and waterproof connections for your critical network infrastructure efficiently and confidently.
Order your L-COM CGC6FF shielded RJ45 IP68 connector today and ensure your outdoor network connections are waterproof, durable, and highly reliable.
Frequently Asked Questions
Where can I buy L-COM CGC6FF?
You can click on the BUY or RFQ button to purchase CGC6FF from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part CGC6FF?
You can download the CGC6FF datasheet or visit the L-COM website for support.
Who is the manufacturer of CGC6FF?
L-COM
