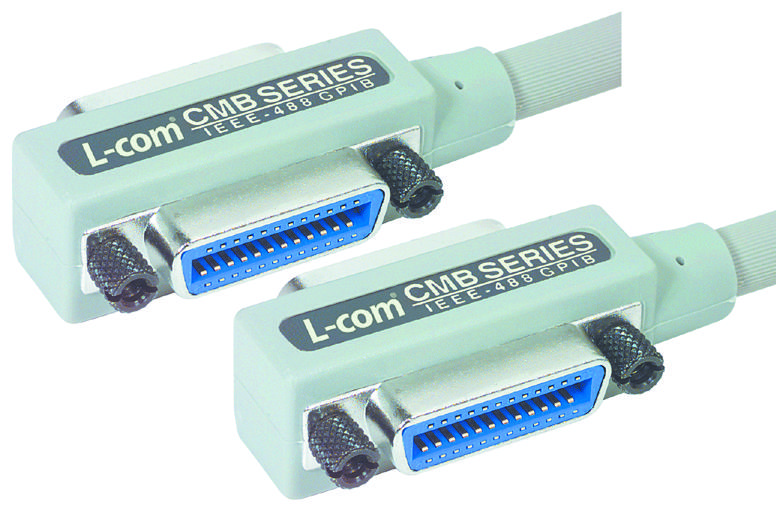

L-COM CMB2405M IEEE-488 Cable
The CMB24-05M is a 0.5-meter molded IEEE-488 cable designed for connecting peripherals requiring high EMI protection. It features an outer braid and aluminized polyester foil shielding for enhanced electromagnetic interference resistance. The cable includes a stamped steel internal enclosure for 100% shielding and a robust strain relief, along with molded backshells for durability and longevity. The connectors have gold-plated contacts for reliable connections through repeated mating cycles, and are housed in beige PVC jackets with nickel-plated steel or die-cast alloy shells. Suitable for test, measurement, automation, and process control applications, this cable ensures compliance with IEEE-488 standards and provides trouble-free operation.
L-COM CMB2405M IEEE-488 Cable Specifications:
- Length: 0.5 meters
- Cable Material: U.L. Style 2464, twisted pairs of 26 AWG stranded copper
- Shielding: Double shield with aluminized polyester foil and braid, drain wire included
- Connectors: 24-pin male GPIB ribbon connector with gold-plated copper alloy contacts
- Connectors Housing: Stamped steel or die-cast alloy, nickel-plated
- Connector Mounting: Moulded backshells with black oxide steel thumbscrews, ISO M3.5 X 0.6
- Overall Diameter: Not specified, typical for GPIB cables
- Temperature Range: -20°C to +80°C
- Conforms to IEEE-488.1-1987 standards
- Packaging: Individually packaged per IEC guidelines
- Environmental Compliance: RoHS compliant
- Operating: Suitable for high-frequency data transmission applications
Buy the Buy IEEE-488 Cable Part Number CMB2405M Online
Order the CMB24-05M IEEE-488 cable online today for reliable high-speed connections in test, measurement, and automation environments. This 0.5-meter cable features a double shielded design, gold-plated contacts, and molded connectors with durable housing, ensuring long-lasting performance. Ideal for professional use, it guarantees minimal electromagnetic interference, conforming to IEEE standards. With RoHS compliance, this cable offers peace of mind for environmentally conscious applications. Simplify your setup by purchasing this high-quality GPIB cable online—fast, secure, and convenient for all your electronic connectivity needs.
Get CMB24-05M high-performance IEEE-488 cable today—built for precise data transfer and durable test connections.
