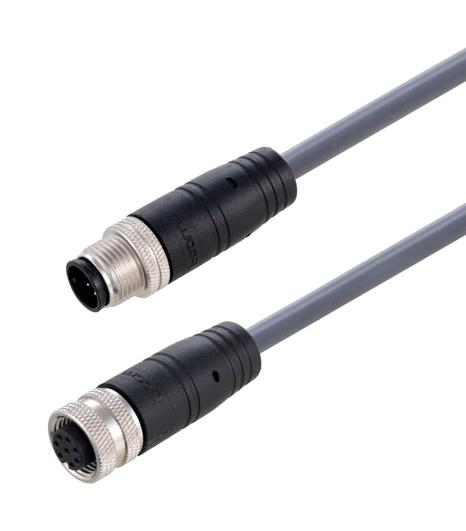

L-COM TRG883C4G5M M12 Cable Assembly
The TRG883C4G5M is a high-quality M12 cable assembly designed for reliable data and power transmission in industrial and telecommunications applications. It features a PVC gray jacket with UV and V-O resistance, molded PVC hood, and brass nickel-plated screw nuts. The assembly includes stranded tinned copper conductors, gold-plated phosphor bronze contacts rated for up to 30 V AC/DC and 2A. Designed to operate within -25°C to +105°C, it provides IP67 ingress protection when mated, ensuring durability and performance in harsh environments. Ideal for automation, control, and communication systems.
L-COM TRG883C4G5M M12 Cable Assembly Specifications:
- Material: PVC jacket, molded hood, brass nickel-plated screw nuts, phosphor bronze contacts with gold plating
- Temperature Range: -25°C to +105°C
- Voltage Rating: 30 V AC/DC
- Current Rating: 2A
- Ingress Protection: IP67 when mated
- Connector Type: Unshielded male and female, 8-position A-coded
- Conductors: Stranded tinned copper, 24 AWG
- Jacket Diameter: 0.205 inches / 5.20 mm
- Environmental Resistance: UV-resistant, V-O resistance
- Dimensions: Overall cable length varies, typical length ranges from 0.5 meters to 10 meters
- Environmental Testing: Tested for continuity, durability in industrial environments
Buy the L-com Series M12 Cable Assembly: TRG883C4G5M
Order the L-com M12 Cable Assembly TRG883C4G5M online today and enjoy seamless connectivity for control systems, automation, and data transmission. With durable PVC jackets, corrosion-resistant nickel-plated nuts, and gold-plated contacts, this UL-listed assembly is designed for harsh environments. It offers IP67 ingress protection, operating from -25°C to +105°C, ensuring reliable function in industrial and outdoor settings. Perfect for telecommunication and automation applications, this cable assembly provides easy installation with flexible lengths ranging from 0.5 meters to 10 meters. Upgrade your connection setup now for maximum performance.
Buy L-com TRG883C4G5M now and experience unmatched reliability and performance in industrial automation and secure connections.
