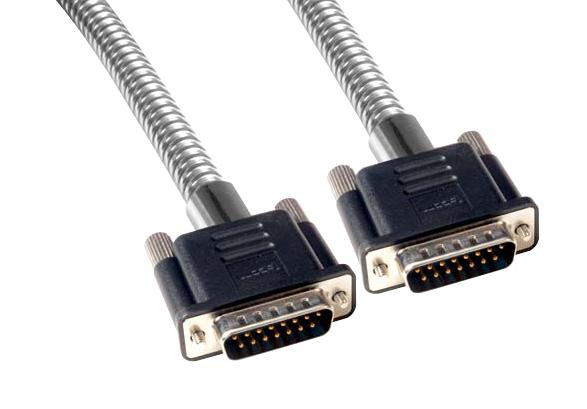

L-COM CSMT15MM50 Metal-Armored D-Sub Cable Assembly
L-Com's ready-made metal-armored D-Sub cable assembly features a stainless steel crush-resistant jacket over a shielded cable with braid and foil shielding, designed to withstand applications where standard cables might be damaged by excessive force. The assembly includes a custom steel internal enclosure with a metal coupling nut under the backshell mold for added strength. It offers a crush resistance of 1500 PSI. The foil and braid shielding provides maximum protection against EMI and RFI, while gold-plated contacts ensure reliable connections through multiple mating cycles. Suitable for use in computer hardware, peripherals, data communication, imaging, video, industrial, and audio/visual applications.
L-COM CSMT15MM50 Metal-Armored D-Sub Cable Assembly Specifications:
- Connector Type: D-Subminiature
- Cable Shielding: Foil and braid
- Outer Jacket Material: Stainless steel, crush-resistant
- Crush Resistance: 1500 PSI
- Contacts: Gold-plated
- Cable Diameter: Not specified
- Assembly Length: Customizable
- Shielding Effectiveness: Maximum EMI and RFI protection
- Enclosure: Steel internal with metal coupling nut
- Application: Computer hardware, peripherals, data communication, industrial, audio/visual
- RoHS Compliant: Yes
- Connector Configuration: 15 Conductor
- External Diameter: Not specified
- Connector Shell: Metal backshell with strain relief
- Cable Gauge: Not specified
- Temperature Range: Not specified
Buy the L-Com Series Metal-Armored D-Sub: CSMT15MM50
Order the L-Com Metal-Armored D-Sub Cable Assembly online today and enjoy the highest durability with stainless steel crush-resistant jacket, maximum EMI/RFI shielding, and gold-plated contacts for dependable performance. Perfect for demanding industrial, data communication, and audio-visual applications, this rugged assembly ensures long-lasting use even under physical stress. With customizable length options and a robust steel enclosure, it provides excellent protection and reliable connectivity, making it an ideal choice for professionals needing durable, high-quality cable solutions for complex setups and critical environments.
Get L-Com CSMT15MM50 today—built for durability and reliable high-performance connections in tough environments.
