L-COM LCCA30042FT2 RF Cable Assembly
L-com’s LCCA30042-FT2 is a flexible, low loss N male to N female bulkhead cable assembly, featuring a heavy-duty heat shrink boot and LL335i coax, measuring 2 feet in length. Operating up to 18 GHz, it employs tape wrapped PTFE dielectric with 83% VoP for minimal insertion loss. The triple shielding—silver-plated copper braid over tape—provides over 95dB shielding effectiveness, ideal for antenna ranges, automated test systems, and long cable runs requiring durability and high performance. Its stainless-steel connectors ensure longevity, making it excellent for RF interconnect applications requiring flexibility and reliable external connections.
L-COM LCCA30042FT2 RF Cable Assembly Specifications:
- Frequency Range: DC to 18 GHz
- Impedance: 50 Ohms
- Cable Type: LL335i
- Dielectric: Tape wrapped PTFE with 83% VoP
- Shielding: Triple layer, silver-plated copper tape and braid, > 95dB
- Inner Conductor: Solid copper, silver plated
- Connector Type: N male to N female bulkhead
- Jacket Material: FEP, green
- Jacket Diameter: 0.3 inches
- Length: 24 inches
- Maximum Operating Temperature: -55°C to +200°C
- Connector Material: Stainless steel, gold over nickel plating
- Assembly Weight: 0.139 lbs
- Minimum Bend Radius: 1.5 inches

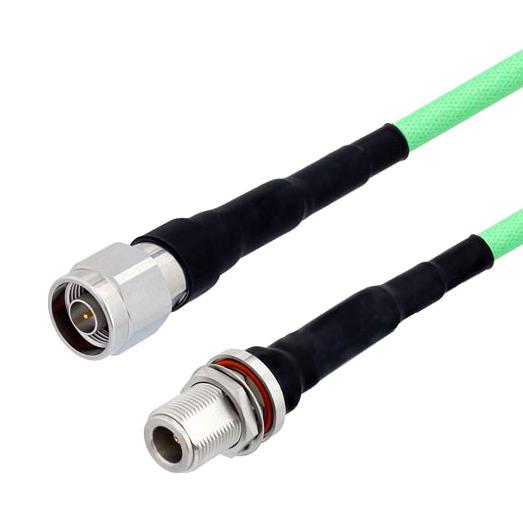

Buy the Buy INFINITG Low Loss N Male to N Female Bulkhead Cable Part Number LCCA30042-FT2 Online
Purchase the INFINITG Low Loss RF Cable Assembly with heavy-duty heat shrink boot today online. This 2 ft long, flexible, and robust N male to N female bulkhead cable operates up to 18 GHz, designed for high-frequency precision and durability. Its triple shielding provides over 95dB effectiveness, perfect for antenna ranges, automated test systems, and laboratory setups. Made with tape-wrapped PTFE dielectric and stainless-steel connectors, it offers excellent performance, longevity, and flexibility for demanding RF interconnect needs, ensuring reliable system connections.
Order your INFINITG Series LCCA30042-FT2 low loss RF cable today and ensure your projects benefit from reliable, high-performance connections for demanding RF applications.
